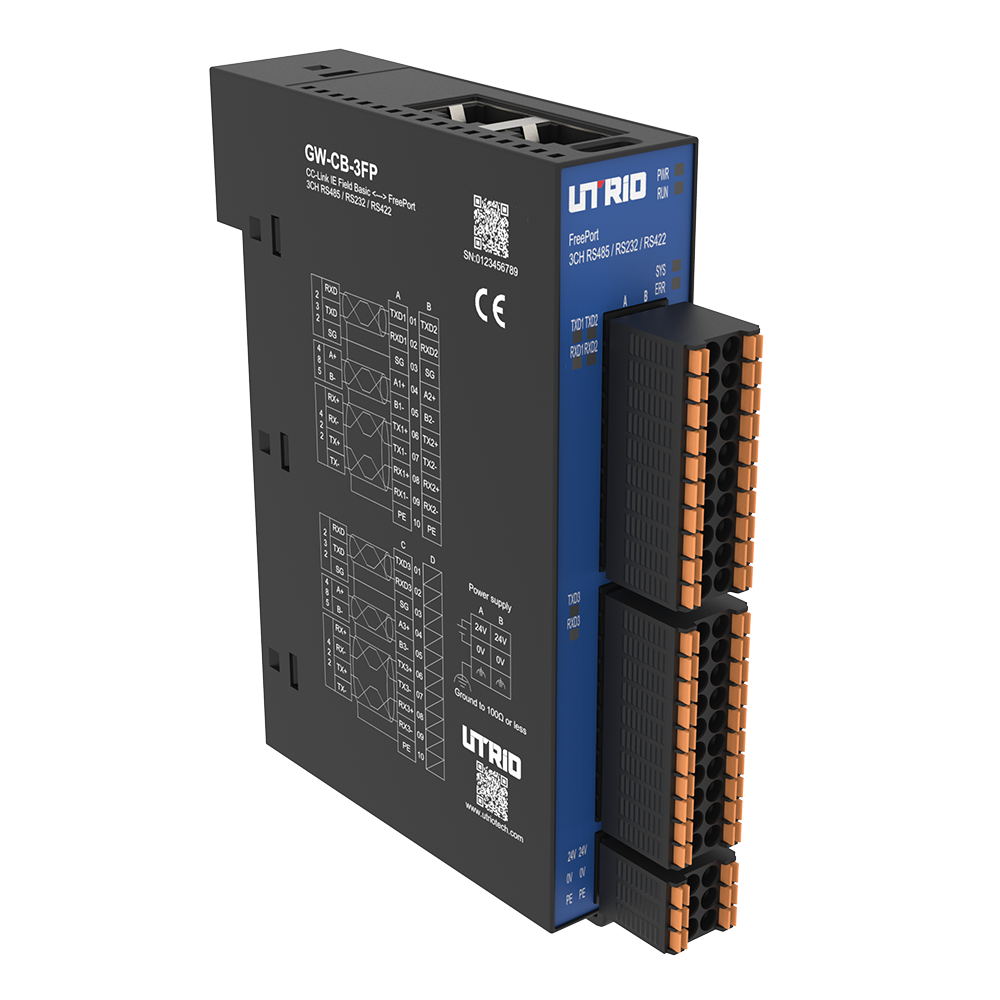

GW-CB-3FP
Industrial protocol converter bridging CC-Link IE Field Basic slave networks with user-defined master/slave protocol devices through RS232/RS485/RS422 serial communication.
Certifications
Core Applications
GW-CB-3FP
Industrial protocol converter bridging CC-Link IE Field Basic slave networks with user-defined master/slave protocol devices through RS232/RS485/RS422 serial communication.
Product Overview
The GW-CB-3FP is an industrial protocol conversion gateway. Product Overview Specification parameters Related downloads Field interface parameter Model number GW-CB-3FP Interface type RS232 & RS485 & RS422 Signal type Master/slave mode User-defined protocol Number of RS232 channels Number of RS485 channels Number of RS422 channels The maximum crimp area of the wire Maximum crimp area of conductor (AWG) The minimum crimp area of the wire Minimum crimp area of conductor (AWG) Strip length Field function parameter Communication protocol RS232, RS485, RS422 Baud rate
Product Family
Key Features
Multi-Protocol Conversion
Connects PROFINET, EtherCAT, EtherNet/IP, Modbus TCP, and CC-Link IE Field Basic networks with serial field devices.
Flexible Serial Integration
Supports RS232, RS485, and RS422 communication for Modbus RTU master/slave or custom serial protocol applications.
Easy Configuration & Diagnostics
Graphical configuration, no-programming setup, point table export, and data recording help simplify commissioning and maintenance.
Typical Applications
Legacy System Retrofit
Ideal for upgrading serial-based equipment and connecting existing field devices to modern industrial Ethernet networks.
Multi-Brand PLC Integration
Helps solve communication compatibility issues between PLCs, controllers, instruments, and third-party devices.
Industrial Data Acquisition
Collects data from meters, sensors, drives, weighing systems, and serial devices into automation networks.
Machine & Production Line Communication
Suitable for packaging machines, conveyor systems, testing equipment, and factory automation systems requiring protocol conversion.
