GW-EC-P06
EtherCAT junction module for branch expansion, cascade connection and flexible EtherCAT network topology.
Certifications
Core Applications
GW-EC-P06
EtherCAT junction module for branch expansion, cascade connection and flexible EtherCAT network topology.
Product Overview
The GW-EC-P06 is an EtherCAT junction module designed for industrial EtherCAT branch expansion. It provides 6 x RJ45 (1 in 5 out) and supports line, star and tree topology structures, helping build flexible real-time control networks. The module uses a high-performance EtherCAT ASIC communication chip and supports distributed clock, hot-swap network ports and short-circuit protected power input.

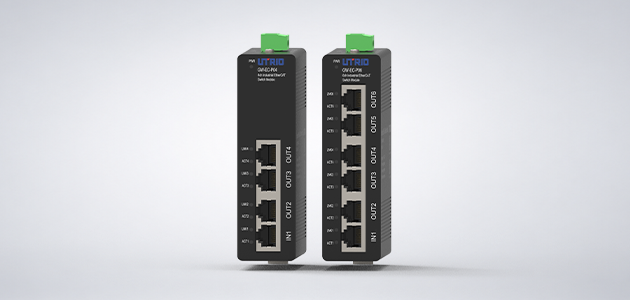

Product Family
Key Features
EtherCAT Branch Expansion
Designed for EtherCAT networks, enabling flexible branch and cascade connections for distributed automation systems.
Real-Time Data Transmission
Supports high-speed, low-latency EtherCAT communication for precise and reliable control signal transmission.
Industrial-Grade Design
Fanless structure, low power consumption, and industrial voltage input support stable operation in demanding automation environments.
Typical Applications
EtherCAT Motion Control
Ideal for servo systems, motion control networks, and high-speed machine control applications.
Robotics Automation
Supports real-time communication for robotic cells, multi-axis control, and automated handling systems.
Precision Production Lines
Suitable for electronics assembly, testing equipment, and precision manufacturing lines requiring fast response.
Modular Machine Networks
Enables flexible EtherCAT topology expansion for modular machines, distributed I/O stations, and equipment-level networking.
