UH-EIP-D16C16P
Compact Horizontal I/O digital input/output module for distributed industrial automation.
Product Overview

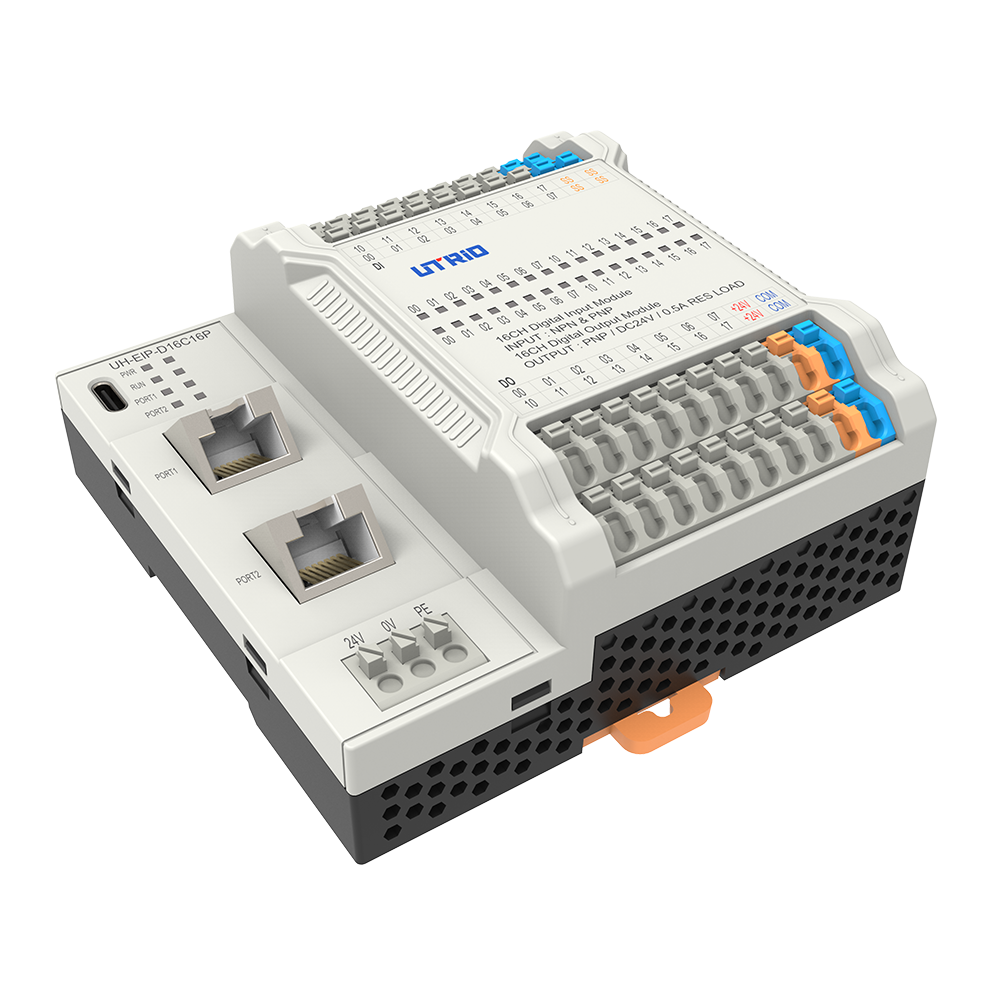

The UH-EIP-D16C16P is a Horizontal I/O integrated I/O module for distributed machine-control and cabinet automation systems. It combines fieldbus communication and fixed digital I/O points in one compact module, reducing station wiring and panel space. Key specifications include EtherNET / IP communication, 16 DI / 16 DO, 24V DC +20%/-15%, and IP20. The module uses PUSH-IN terminal wiring for straightforward installation and maintenance. Select the protocol and I/O configuration according to the PLC network, signal type and required channel count.
Product Family
Key Features
Low-Profile Horizontal Design
Compact horizontal structure with low installation height helps save cabinet space and simplify module layout.
Fast Terminal Wiring
Push-in terminal connection enables quick wiring, clean cable management, and efficient on-site installation.
Clear Channel Indication
Channel indicators are positioned close to each I/O point, making signal status, inspection, and maintenance easier.
Typical Applications
Control Cabinet Integration
Ideal for compact cabinet installations where space-saving layout and centralized wiring are required.
PLC I/O Expansion
Supports flexible 32DI, 32DO, and 16DI+16DO configurations for PLC signal expansion.
Machine Automation
Suitable for packaging machines, conveying systems, inspection equipment, and OEM automation systems.
Factory Production Lines
Supports distributed signal connection for sensors, actuators, indicators, and solenoid valves in automation lines.
