UK20-8AI-U-16
Compact High-Speed PUSH-IN Type analog I/O module for modular DIN-rail I/O applications.
Certifications
Core Applications
UK20-8AI-U-16
Compact High-Speed PUSH-IN Type analog I/O module for modular DIN-rail I/O applications.
Product Overview
The UK20-8AI-U-16 is part of the High-Speed PUSH-IN Type range and is designed as an analog I/O module for modular IP20 distributed I/O systems. It supports DIN-rail mounted automation cabinets and machine-control applications where compact signal, power or communication modules need to be combined by station. Key specifications include signal type Voltage type (0...+5V/(-5...+5V)/0...+10V/(-10...+10V)) configurable, PUSH-IN terminal block, IP20. The module uses PUSH-IN terminal block wiring to simplify installation and maintenance. Use it with compatible UTRIO I/O adapters and extension modules according to the required bus protocol, signal type and channel count.
Product Family
Key Features
High-Speed EtherCAT Communication
Fast EtherCAT-based I/O response enables real-time signal acquisition and control for high-performance automation systems.
Ultra-Slim Slice Design
12 mm blade-type modules save cabinet space while supporting flexible combinations of digital, analog, relay, power, and branch modules.
Flexible Branch Expansion
2-channel branch modules allow flexible topology expansion and easy integration of local EtherCAT devices within the system.
Typical Applications
High-Speed Machine Control
Ideal for motion control, assembly equipment, and automation systems requiring fast I/O response.
Compact Control Cabinets
Ultra-slim slice modules help reduce cabinet space while keeping wiring and module layout organized.
EtherCAT Automation Systems
Suitable for EtherCAT-based PLC systems, distributed I/O stations, and modular machine architectures.
Production Line Expansion
Supports flexible I/O expansion for packaging, conveying, testing, and high-speed production line applications.

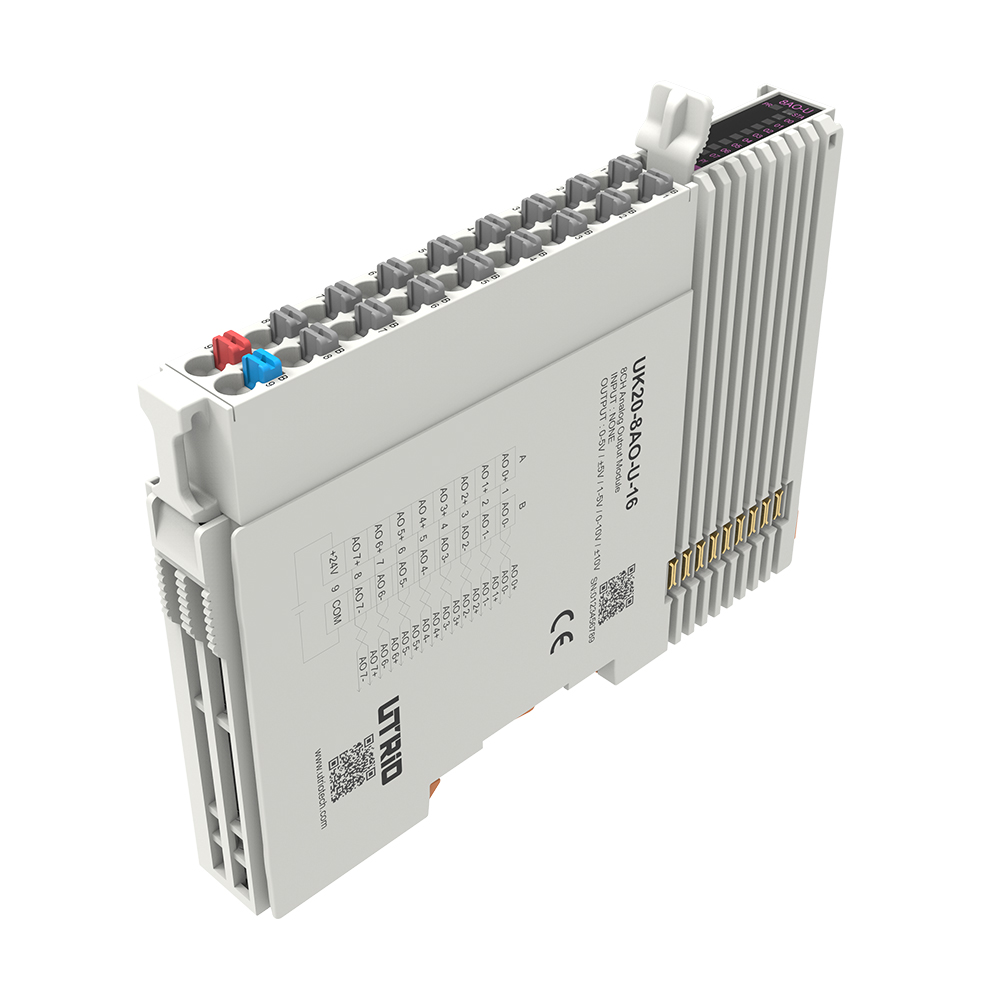

Similar Products
