ULO-TB101-PTV2.5-QUATTRO
ULO-TB101-PTV2.5-QUATTRO side push-in din-rail terminal blocks designed for organized DIN rail terminal block wiring, featuring dimensions 5.2mm\69.2mm\46.9mm, rated current 24A, rated voltage 800V, wire range 0.14-4.0mm², connection method Push-in spring connection, mounting DIN rail.
Certifications
Core Applications
ULO-TB101-PTV2.5-QUATTRO
ULO-TB101-PTV2.5-QUATTRO side push-in din-rail terminal blocks designed for organized DIN rail terminal block wiring, featuring dimensions 5.2mm\69.2mm\46.9mm, rated current 24A, rated voltage 800V, wire range 0.14-4.0mm², connection method Push-in spring connection, mounting DIN rail.
Product Overview

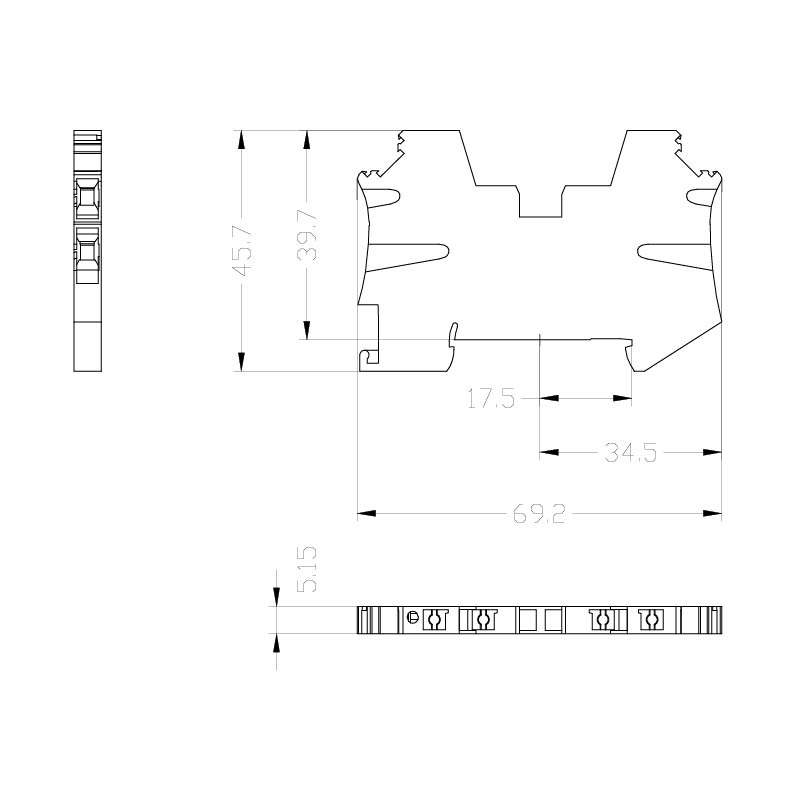

The ULO-TB101-PTV2.5-QUATTRO is a side push-in din-rail terminal blocks for DIN rail terminal block assemblies and industrial control cabinet wiring. Key specifications include Dimensions: 5.2mm\69.2mm\46.9mm, Rated current: 24A, Rated voltage: 800V, Wire range: 0.14-4.0mm², Connection method: Push-in spring connection, Mounting: DIN rail, Protection level: IP20, Work temperature: -40~+105℃. Product design details include Insulation material: PA66, Flame retardant grade, UL94 compliance: UL94V-0, Contact material: Copper alloy, Surface characteristics: Sn,Plated. Use it with compatible DIN rail terminal block accessories for organized wiring, marking and installation on standard DIN rails.
Product Family
Key Features
Side Push-In Wiring
Side-entry push-in connection allows fast wire insertion from the side, helping simplify cabinet wiring and improve installation efficiency.
Tool-Free Connection
Solid wires or ferruled flexible wires can be inserted directly without special tools, making wiring faster and more convenient.
Flexible Terminal Combinations
Available in feed-through, ground, multi-wire, angled, and double-level terminal versions for different DIN-rail wiring layouts.
Typical Applications
Compact Control Cabinets
Ideal for cabinet layouts where side-entry wiring helps save space and keep terminal rows organized.
PLC & I/O Wiring
Suitable for connecting PLCs, I/O modules, sensors, actuators, relays, and field signals in automation systems.
Power & Signal Distribution
Used for reliable power branching, signal transfer, grounding, and field wiring connection inside electrical panels.
Machine Automation Panels
Supports fast wiring and maintenance in machinery, packaging equipment, production lines, and industrial control systems.
