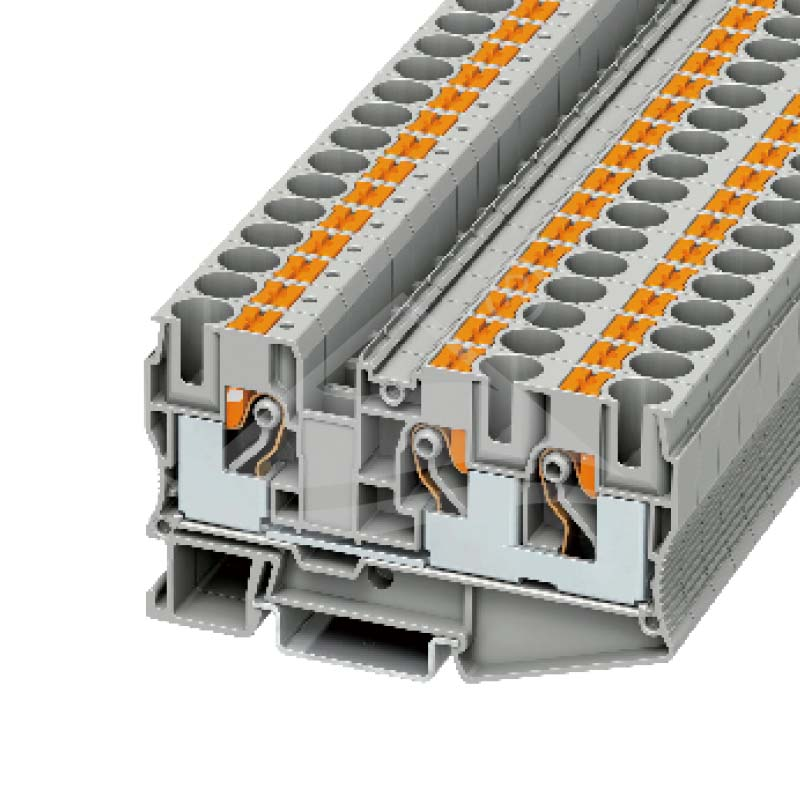

ULO-TB186-PT10-TWIN

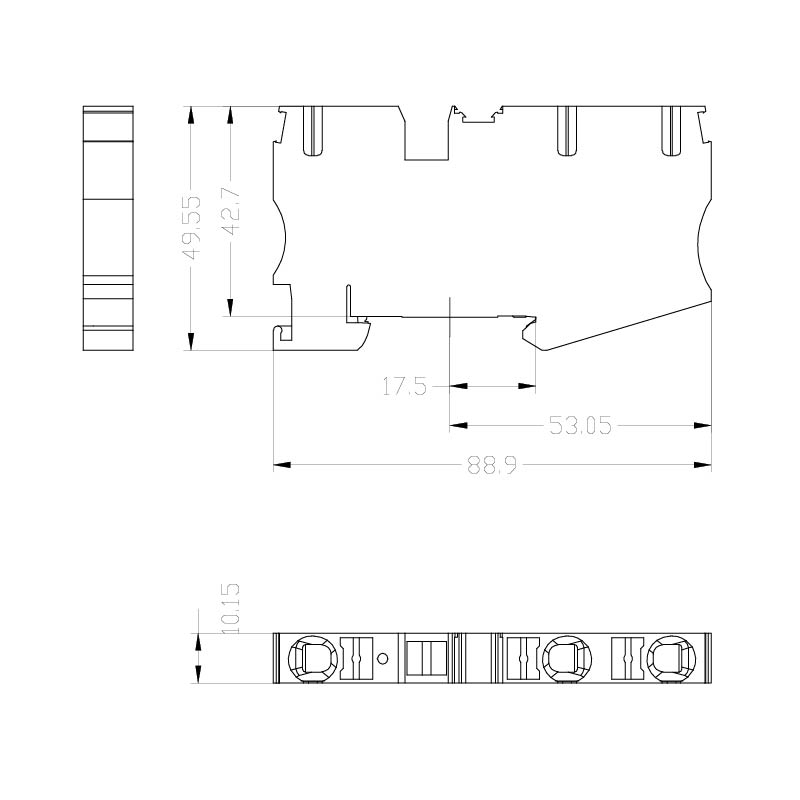

ULO-TB186-PT10-TWIN push-in din-rail terminal blocks designed for organized DIN rail terminal block wiring, featuring dimensions 10.2mm\88.9mm\50.5mm, rated current 57A, rated voltage 1000V, wire range 20-6AWG, connection method Push-in spring connection, mounting DIN rail.
Certifications
Core Applications
ULO-TB186-PT10-TWIN
ULO-TB186-PT10-TWIN push-in din-rail terminal blocks designed for organized DIN rail terminal block wiring, featuring dimensions 10.2mm\88.9mm\50.5mm, rated current 57A, rated voltage 1000V, wire range 20-6AWG, connection method Push-in spring connection, mounting DIN rail.
Product Overview
The ULO-TB186-PT10-TWIN is a push-in din-rail terminal blocks for DIN rail terminal block assemblies and industrial control cabinet wiring. Key specifications include Dimensions: 10.2mm\88.9mm\50.5mm, Rated current: 57A, Rated voltage: 1000V, Wire range: 20-6AWG, Connection method: Push-in spring connection, Mounting: DIN rail, Protection level: IP20, Work temperature: -40~+105℃. Product design details include Insulation material: PA66, Flame retardant grade, UL94 compliance: UL94V-0, Contact material: Copper alloy, Surface characteristics: Sn,Plated. Use it with compatible DIN rail terminal block accessories for organized wiring, marking and installation on standard DIN rails.
Product Family
Key Features
Tool-Free Push-In Wiring
Push-in connection allows solid wires or ferruled flexible wires to be inserted directly, making cabinet wiring faster and easier.
Reliable DIN-Rail Installation
Standard DIN-rail mounting supports organized terminal assembly, stable connection, and flexible expansion in control cabinets.
Flexible Terminal Configurations
Available in feed-through, ground, multi-wire, double-level, three-level, and fuse terminal versions for different wiring requirements.
Typical Applications
Control Cabinet Wiring
Ideal for organized power and signal wiring in industrial control cabinets, distribution panels, and automation systems.
PLC & I/O Signal Connection
Suitable for connecting PLCs, remote I/O modules, sensors, actuators, relays, and field wiring.
Power Distribution Systems
Used for reliable power distribution, grounding, and circuit branching inside electrical panels.
Machine & Factory Automation
Supports fast installation and maintenance in machinery, production lines, packaging equipment, and industrial control systems.

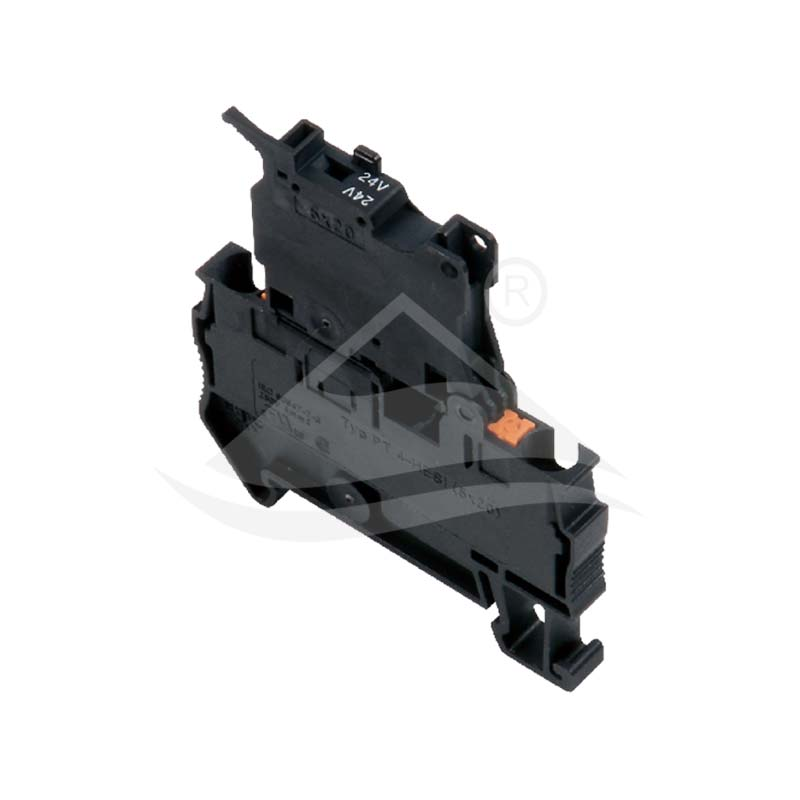

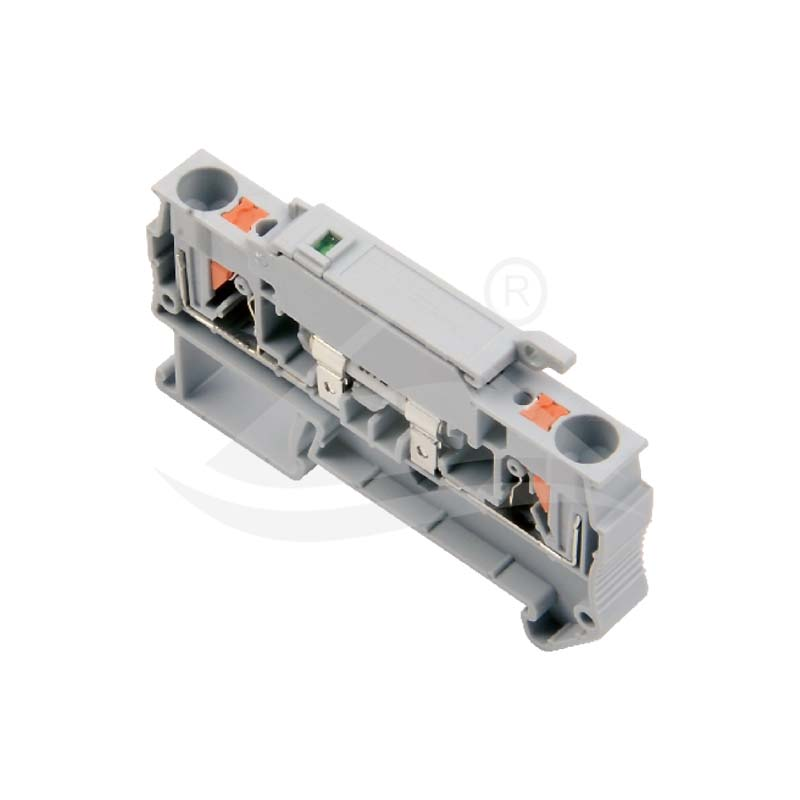

Similar Products
Need a custom solution?
Our engineering team is ready to help you find the right connectivity solution for your application.
