ULO-TB410-8RC/2.5
Compact MCS terminal block connector for modular MCS wire-to-board connections with compatible connector and PCB header combinations, featuring 2.5 mm pitch, 6A/160V, 0° connection direction, through-hole soldering mounting.
Certifications
Core Applications
ULO-TB410-8RC/2.5
Compact MCS terminal block connector for modular MCS wire-to-board connections with compatible connector and PCB header combinations, featuring 2.5 mm pitch, 6A/160V, 0° connection direction, through-hole soldering mounting.
Product Overview
The ULO-TB410-8RC/2.5 is a 2.5 mm MCS terminal block connector designed for modular MCS wire-to-board connections with compatible connector and PCB header combinations. Key specifications include 2.5 mm pitch, 6A rated current, 160V rated voltage, 0° connection direction, through-hole soldering mounting, available in 2 to 12 positions. Product design details include PA66 insulation, UL94V-0 flammability rating, default white housing color. Use it with matching products from the same pitch and series to support installation, maintenance and module replacement.

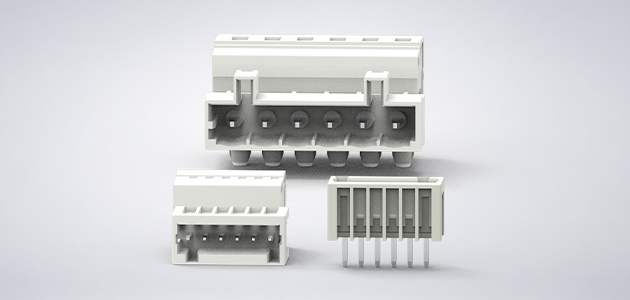

Product Family
Key Features
PCB-Mounted Header Design
Designed as the board-side mating connector for MCS plugs, enabling reliable PCB connection and modular device assembly.
Secure Plug-In Interface
Matched plug-and-header structure provides stable electrical contact for detachable power and signal transmission.
Multiple Pitch & Pin Options
Available in various pitches, pole numbers, and mounting styles to support different PCB layouts and application requirements.
Typical Applications
PCB Power Interfaces
Ideal for detachable power input and output connections on control boards, power modules, and industrial devices.
Industrial Control Equipment
Used in PLCs, controllers, drives, I/O modules, and automation equipment requiring reliable board-side connection.
Modular Electronic Devices
Suitable for equipment designs that require plug-in maintenance, quick replacement, or flexible module assembly.
Power & Signal Transmission
Works with MCS plugs to provide secure board-to-wire or board-to-board connection for power and control signals.

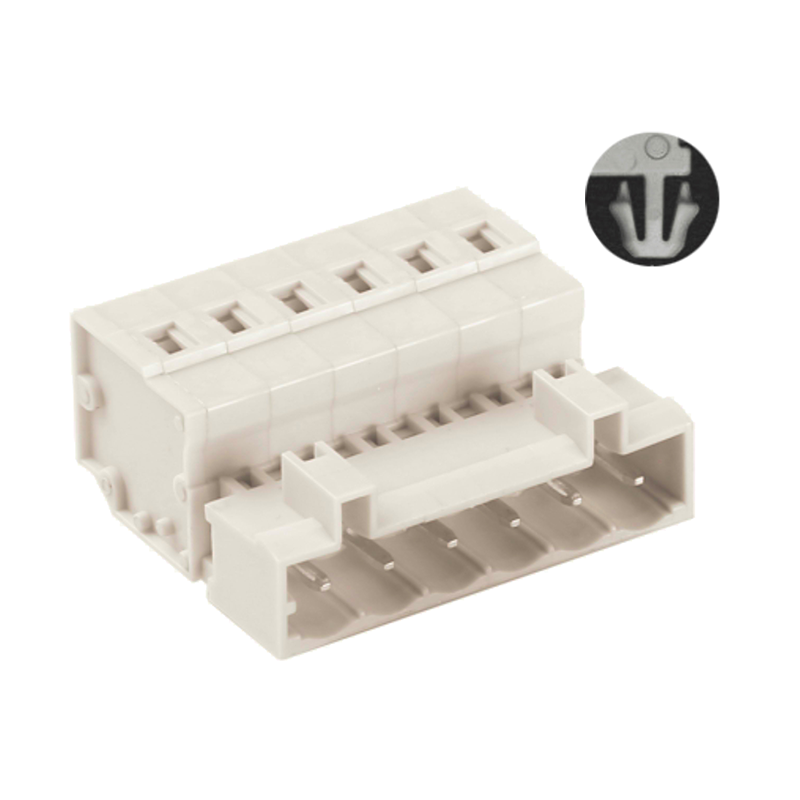

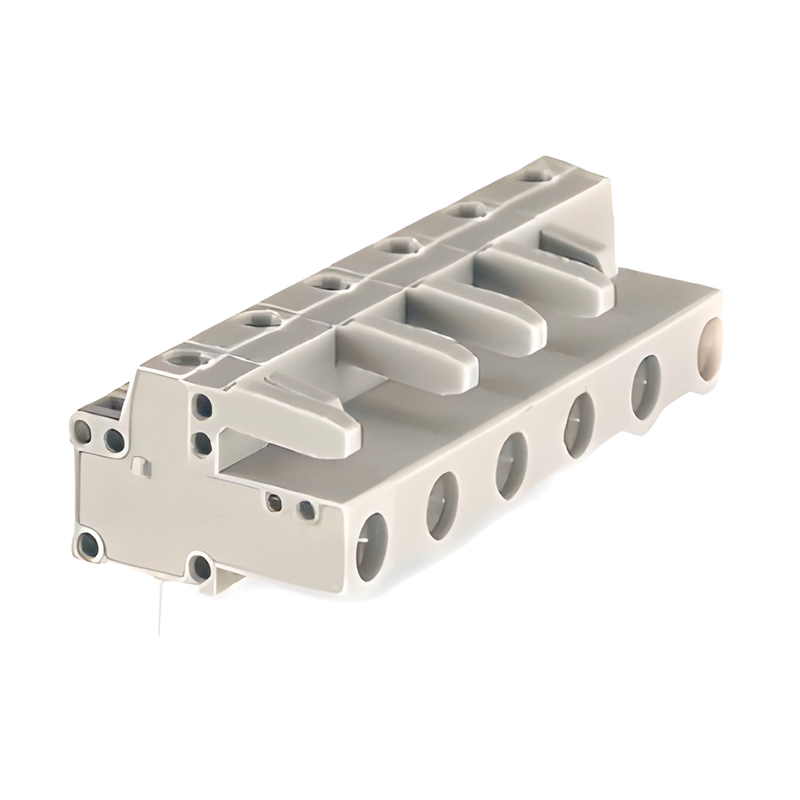

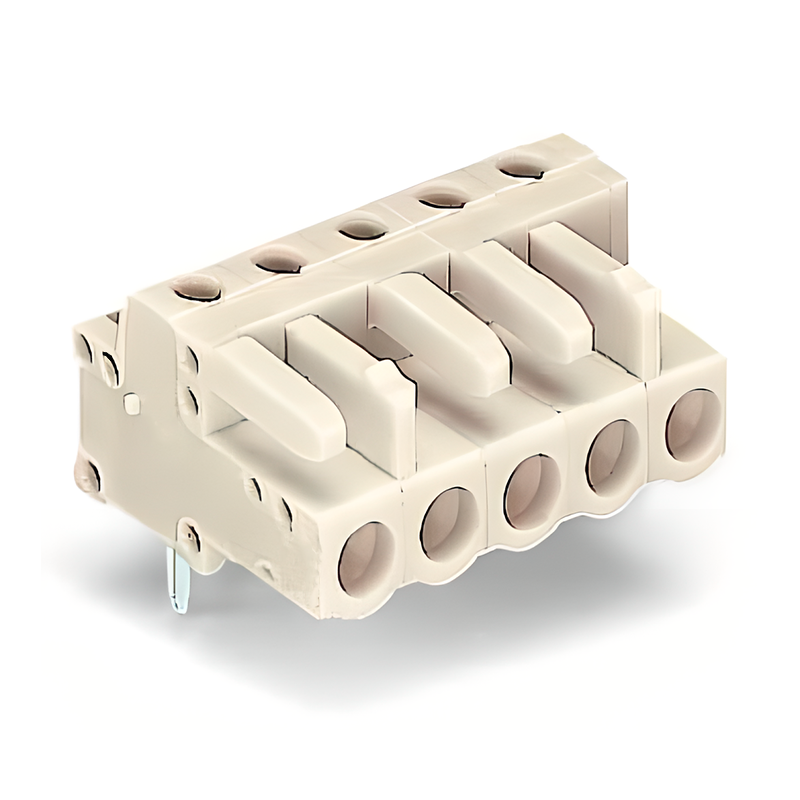

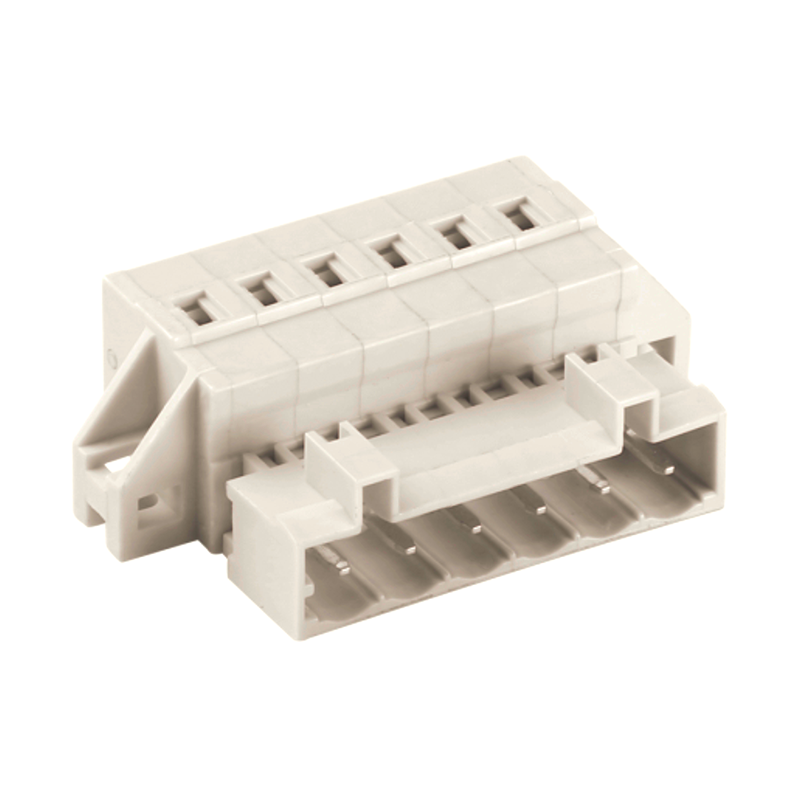

Similar Products
