ULO-TB51-127/5.0
Compact rising clamp terminal block for reliable PCB wiring with screw clamping and stable conductor retention, featuring 5.0 mm pitch, 10A/250V, screw connection.
Certifications
Core Applications
ULO-TB51-127/5.0
Compact rising clamp terminal block for reliable PCB wiring with screw clamping and stable conductor retention, featuring 5.0 mm pitch, 10A/250V, screw connection.
Product Overview

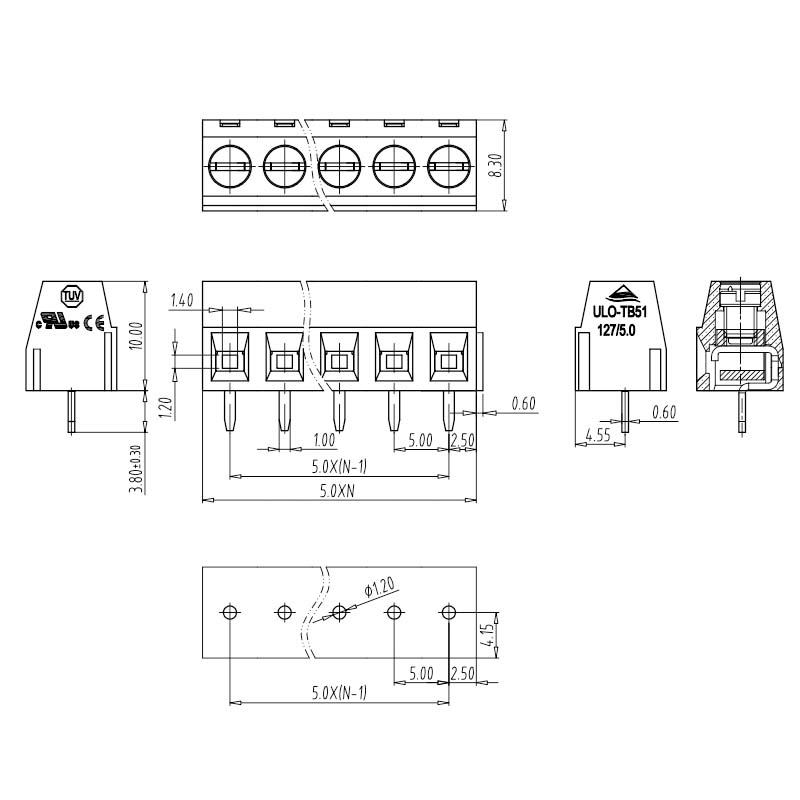

The ULO-TB51-127/5.0 is a 5.0 mm rising clamp terminal block designed for reliable PCB wiring with screw clamping and stable conductor retention. Key specifications include 5.0 mm pitch, 10A rated current, 250V rated voltage, screw connection, available in 2 to 24 positions. Product design details include PA66 insulation, UL94V-0 flammability rating, default green housing color.
Product Family
Key Features
Rising Clamp Connection
Rising clamp structure provides secure wire clamping and stable electrical contact for reliable PCB wiring.
Compact PCB Design
Space-saving terminal block design supports efficient PCB layout while maintaining strong mechanical connection.
Multiple Wiring Directions
Available with horizontal, vertical, and angled wiring options to meet different board layouts and installation requirements.
Typical Applications
Power Supply Equipment
Suitable for power input and output connections in power supplies, adapters, and industrial power modules.
Frequency Converters
Used for reliable signal and power wiring in drives, inverters, and motor control devices.
Industrial Control Boards
Ideal for PLC control boards, controllers, automation devices, and industrial electronic equipment.
Information Technology Equipment
Supports stable PCB wiring in communication devices, control interfaces, and electronic system modules.
