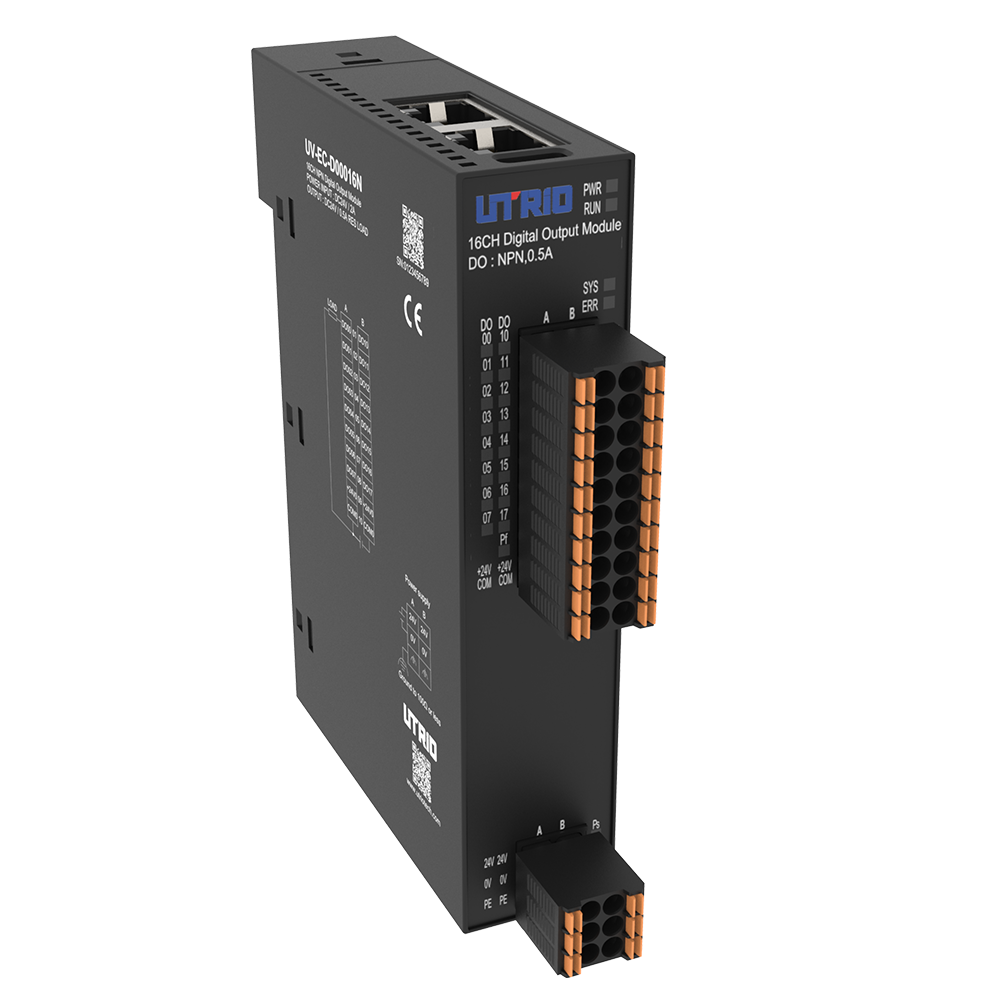

UV-EC-D00016N
Compact Vertical I/O digital output module for distributed industrial automation.
Product Overview
The UV-EC-D00016N is a Vertical I/O integrated I/O module for distributed machine-control and cabinet automation systems. It combines fieldbus communication and fixed digital I/O points in one compact module, reducing station wiring and panel space. Key specifications include EtherCAT communication, 16 DO, 24V DC +20%/-15%, and IP20. The module uses PUSH-IN terminal wiring for straightforward installation and maintenance. Select the protocol and I/O configuration according to the PLC network, signal type and required channel count.
Product Family
Key Features
Integrated Vertical Design
Combines bus communication, I/O terminals, status indicators, and power interface in one compact vertical module.
Easy Expansion & Cascading
Dual Ethernet ports support module cascading, enabling flexible distributed I/O deployment across automation systems.
Multiple Protocol Options
Available with PROFINET, EtherCAT, EtherNet/IP, Modbus TCP, CC-Link IE Field Basic, and CC-Link protocols.
Typical Applications
Distributed Machine I/O
Suitable for connecting sensors, actuators, valves, indicators, and other field-level devices close to the machine.
Control Cabinet Systems
35 mm DIN-rail installation and compact vertical layout help simplify cabinet wiring and save installation space.
PLC Signal Expansion
Supports 16DI+16DO, 32DI, 32DO, NPN, and PNP configurations for flexible PLC I/O expansion.
Production Line Automation
Ideal for packaging, conveying, assembly, testing, and other industrial automation line applications.

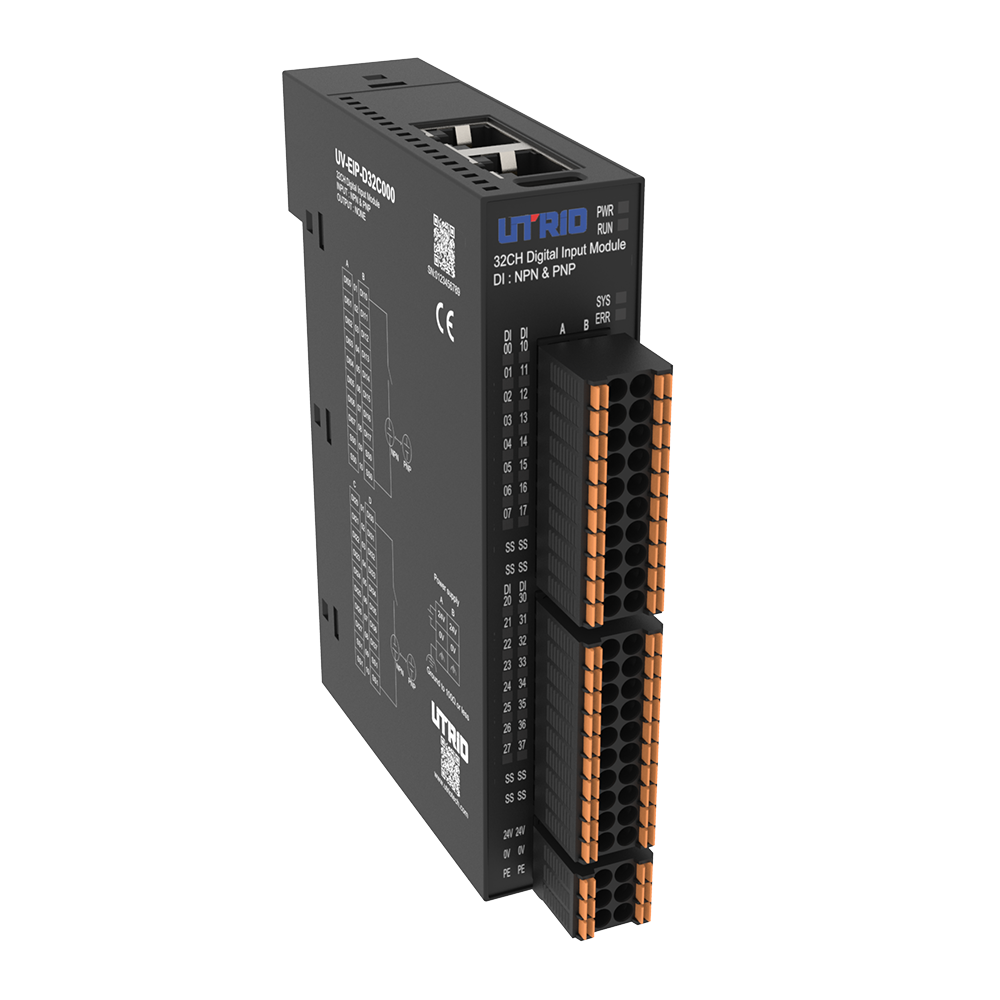

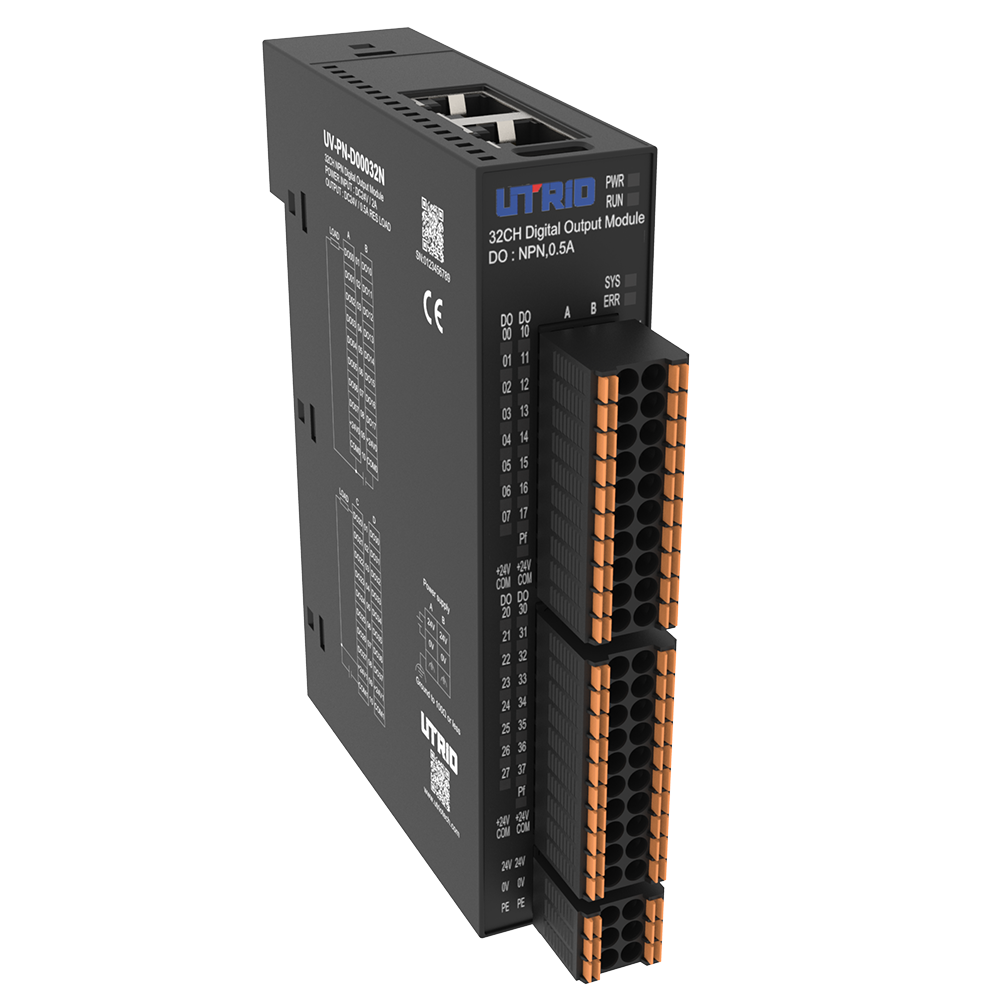

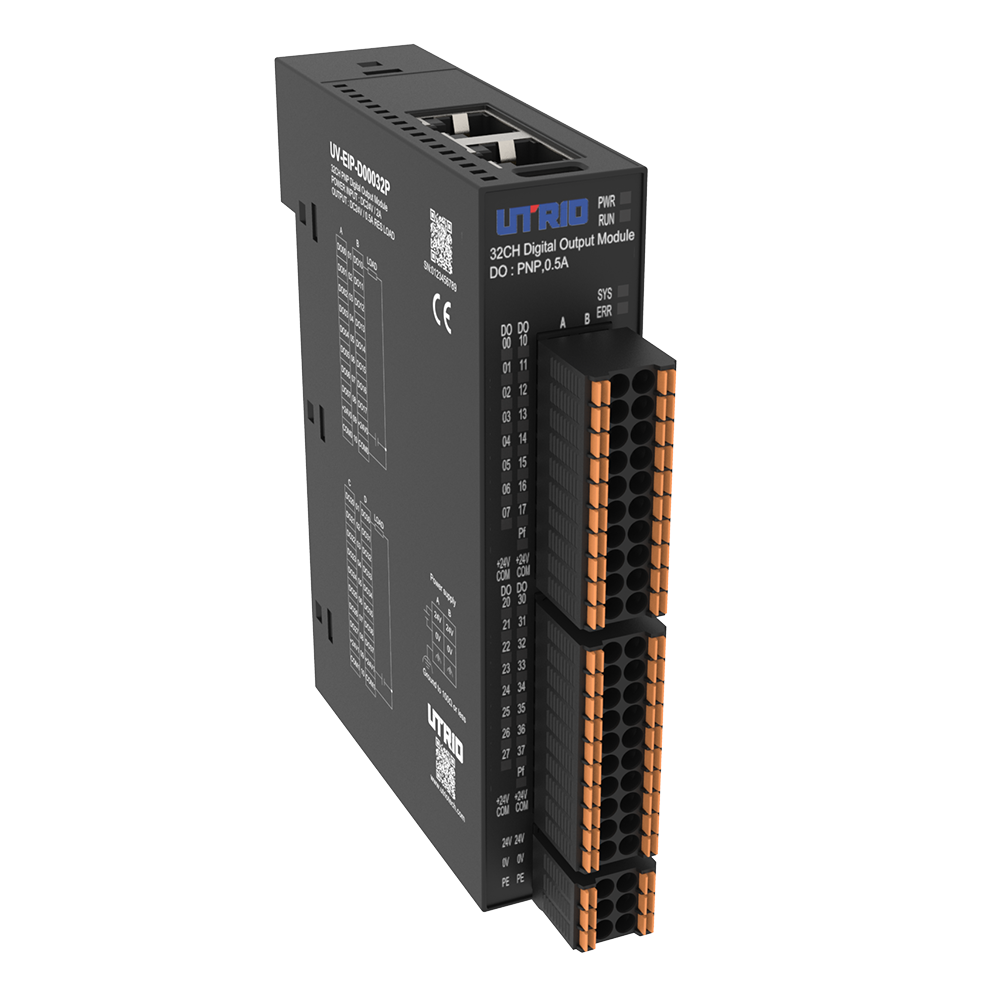

Similar Products
