DVI Connectors
PCB-mounted DVI connectors for reliable video interface connections in electronic equipment, display systems and industrial devices.
Filter by Specifications
Narrow products by DVI type, connector gender, number of contacts, mounting orientation and other key parameters.
Selection Support
Get help selecting the right connector for your DVI interface, PCB layout and mounting requirements.
Datasheets & Quotes
Access technical documents and request pricing directly from the product list.
DVI Connectors (11)

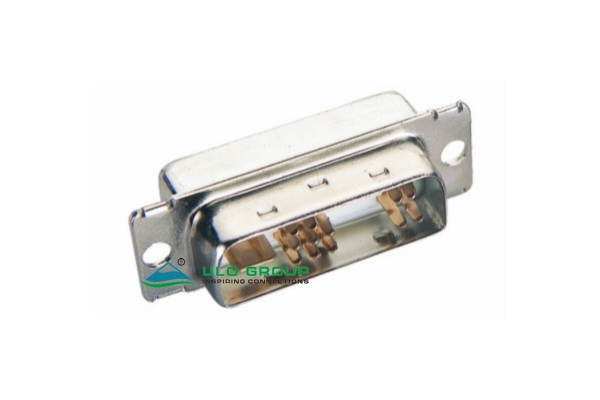

ULO-DP472
dVI Plug Solder Type for digital video signal transmission in display and industrial equipment.
- Rated current
- 1A
- Contact impedance
- 30mΩ Max
- Insulation impedance
- 1000MΩ
- Withstand voltage
- 500V AC 1 Minute

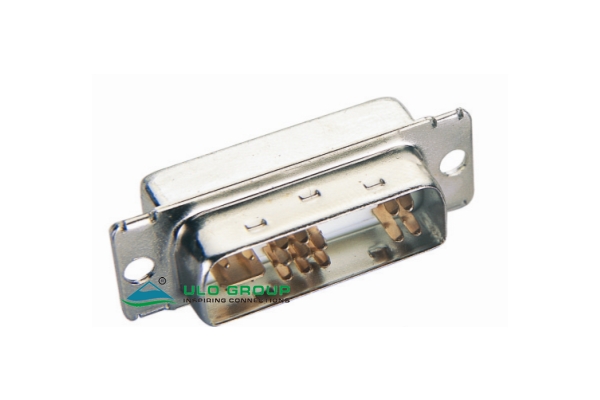

ULO-DP473
dVI Plug Solder Type 12+5 for digital video signal transmission in display and industrial equipment.
- Rated current
- 1A
- Contact impedance
- 30mΩ Max
- Insulation impedance
- 1000MΩ
- Withstand voltage
- 500V AC 1 Minute

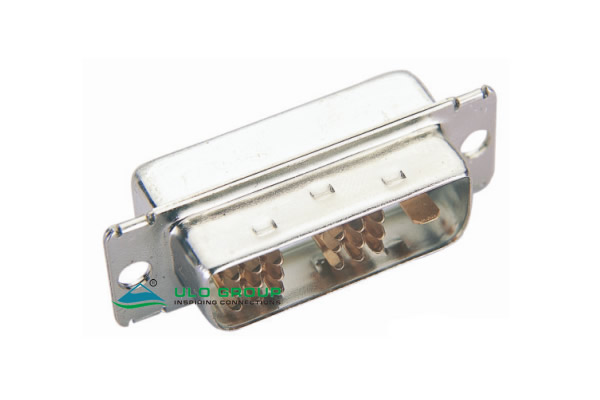

ULO-DP474
dVI Plug Solder Type 18+1 for digital video signal transmission in display and industrial equipment.
- Rated current
- 1A
- Contact impedance
- 30mΩ Max
- Insulation impedance
- 1000MΩ
- Withstand voltage
- 500V AC 1 Minute

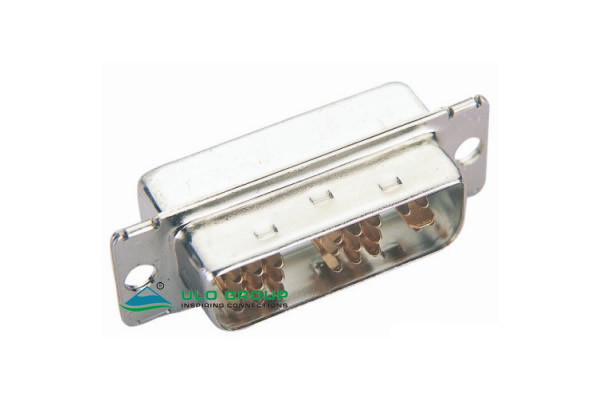

ULO-DP475
dVI Plug Solder Type 18+5 for digital video signal transmission in display and industrial equipment.
- Rated current
- 1A
- Contact impedance
- 50mΩ Max
- Insulation impedance
- 1000MΩ
- Withstand voltage
- 500V AC 1 Minute

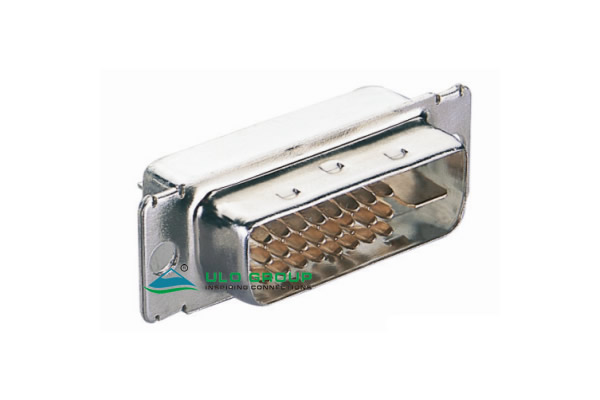

ULO-DP476
dVI Plug Solder Type 24+1 for digital video signal transmission in display and industrial equipment.
- Rated current
- 1A
- Contact impedance
- 30mΩ Max
- Insulation impedance
- 1000MΩ
- Withstand voltage
- 500V AC 1 Minute

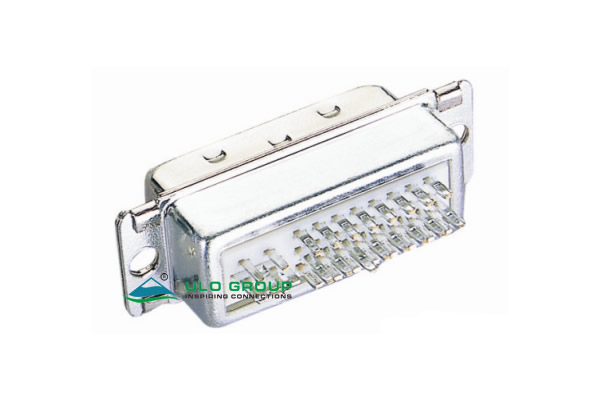

ULO-DP477
dVI Plug Solder Type 24+5 for digital video signal transmission in display and industrial equipment.
- Rated current
- 1A
- Contact impedance
- 30mΩ Max
- Insulation impedance
- 1000MΩ
- Withstand voltage
- 500V AC 1 Minute

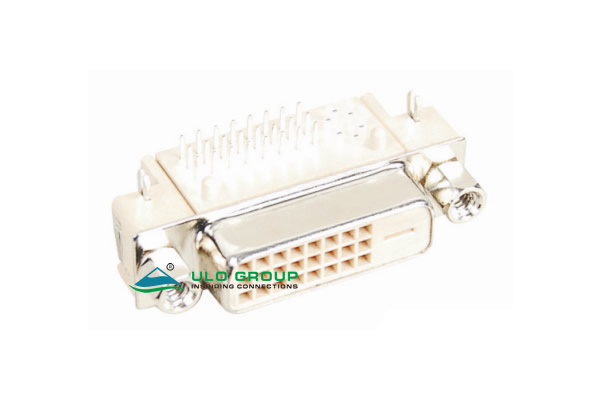

ULO-DR478
dVI Receptacle With Right Angle 24+1 for digital video signal transmission in display and industrial equipment.
- Rated current
- 1A
- Contact impedance
- 50mΩ Max
- Insulation impedance
- 1000MΩ
- Withstand voltage
- 500V AC 1 Minute

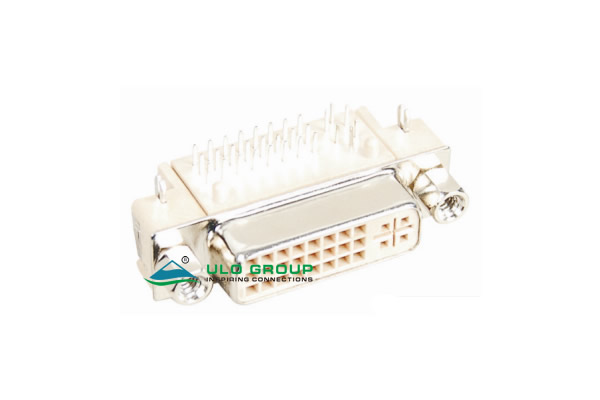

ULO-DR479
dVI Receptacle With Right Angle 24+5 for digital video signal transmission in display and industrial equipment.
- Rated current
- 1A
- Contact impedance
- 50mΩ Max
- Insulation impedance
- 1000MΩ
- Withstand voltage
- 500V AC 1 Minute

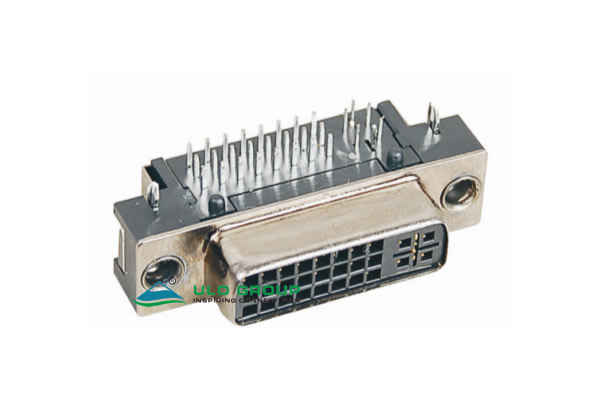

ULO-DR479A
dVI 24+5 Receptacle W/ Shielding Type for digital video signal transmission in display and industrial equipment.
- Rated current
- 1A
- Contact impedance
- 50mΩ Max
- Insulation impedance
- 1000MΩ
- Withstand voltage
- 500V AC 1 Minute

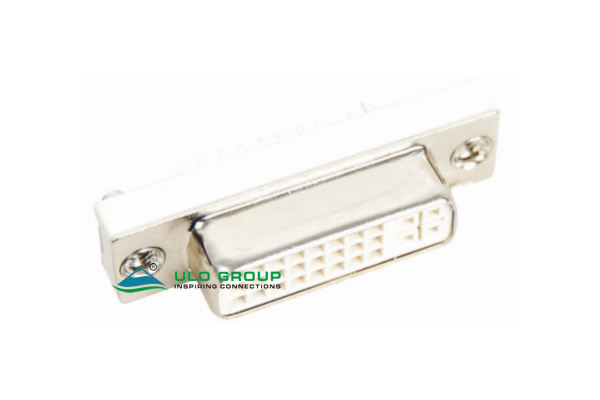

ULO-DR479B
dVI Receptacle V/T Type for digital video signal transmission in display and industrial equipment.
- Rated current
- 1A
- Contact impedance
- 50mΩ Max
- Insulation impedance
- 1000MΩ
- Withstand voltage
- 500V AC 1 Minute

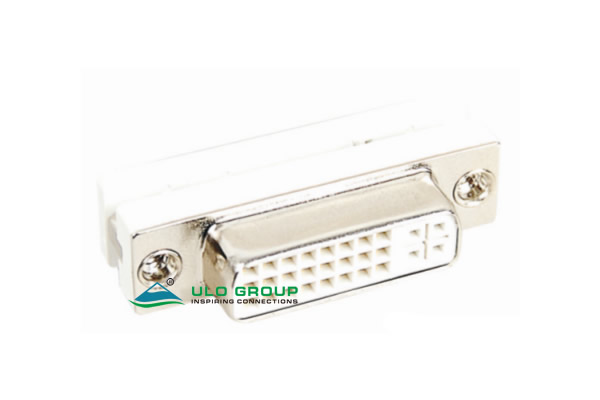

ULO-DR479C
dVI Receptacle V/T Type for digital video signal transmission in display and industrial equipment.
- Rated current
- 1A
- Contact impedance
- 50mΩ Max
- Insulation impedance
- 1000MΩ
- Withstand voltage
- 500V AC 1 Minute
