HDMI Connectors
PCB-mounted HDMI connectors for reliable digital audio and video interface connections in electronic equipment, display systems and industrial devices.
Filter by Specifications
Narrow products by HDMI type, mounting style, orientation, port count and other key parameters.
Selection Support
Get help selecting the right connector for your HDMI interface, PCB layout and mounting requirements.
Datasheets & Quotes
Access technical documents and request pricing directly from the product list.
HDMI Connectors (4)

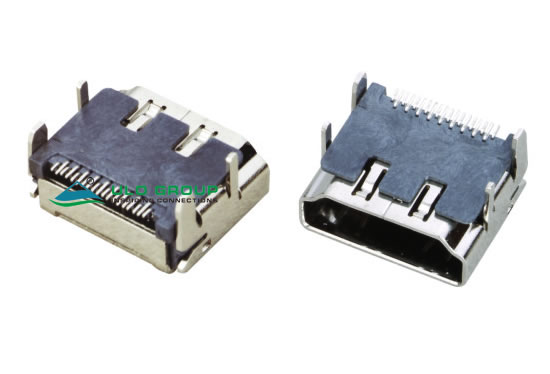

ULO-HC502
0.5mm HDMI 19 Pin Female SMT Type for compact high-definition audio and video interface connection.
- Contact impedance
- 50mΩ Max
- Insulation impedance
- 100MΩ
- Withstand voltage
- 100V AC 1 Minute
- Temperature range
- -20°C~+70°C

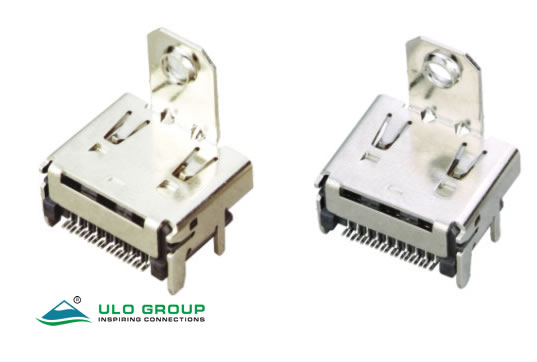

ULO-HC503
0.5mm HDMI 19 Pin Female SMT Type for compact high-definition audio and video interface connection.
- Contact impedance
- 50mΩ Max
- Insulation impedance
- 100MΩ
- Withstand voltage
- 100V AC 1 Minute
- Temperature range
- -20°C~+70°C

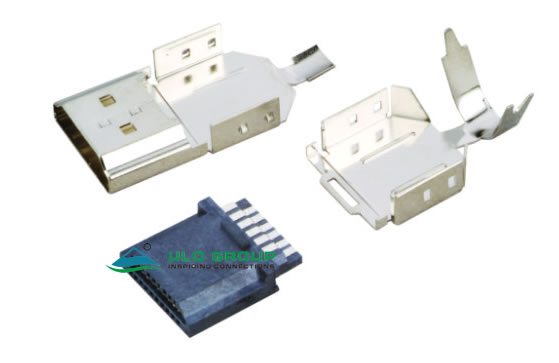

ULO-HC504
0.5mm HDMI 19 Pin Male Solder Type for compact high-definition audio and video interface connection.
- Contact impedance
- 50mΩ Max
- Insulation impedance
- 100MΩ
- Withstand voltage
- 100V AC 1 Minute
- Temperature range
- -20°C~+70°C

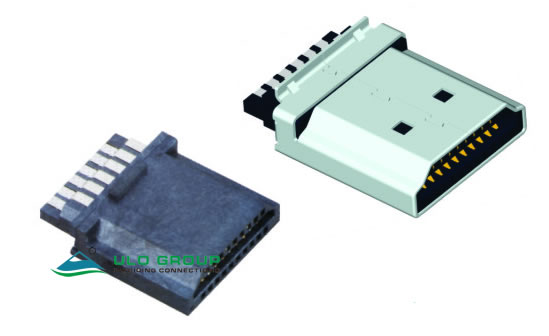

ULO-HC505
0.5mm HDMI 19 Pin Male Solder Type for compact high-definition audio and video interface connection.
- Contact impedance
- 50mΩ Max
- Insulation impedance
- 100MΩ
- Withstand voltage
- 100V AC 1 Minute
- Temperature range
- -20°C~+70°C
