Screw-Clamp DIN-Rail Terminal Blocks
DIN-rail terminal blocks with screw-clamp connection technology for secure conductor termination and reliable power and signal wiring in industrial control cabinets.
Filter by Specifications
Narrow products by terminal function, number of levels, wire range, rated current and other key parameters.
Selection Support
Get help selecting terminal blocks for your circuit functions, conductor sizes and cabinet wiring requirements.
Datasheets & Quotes
Access technical documents and request pricing directly from the product list.
Screw-Clamp DIN-Rail Terminal Blocks (41)

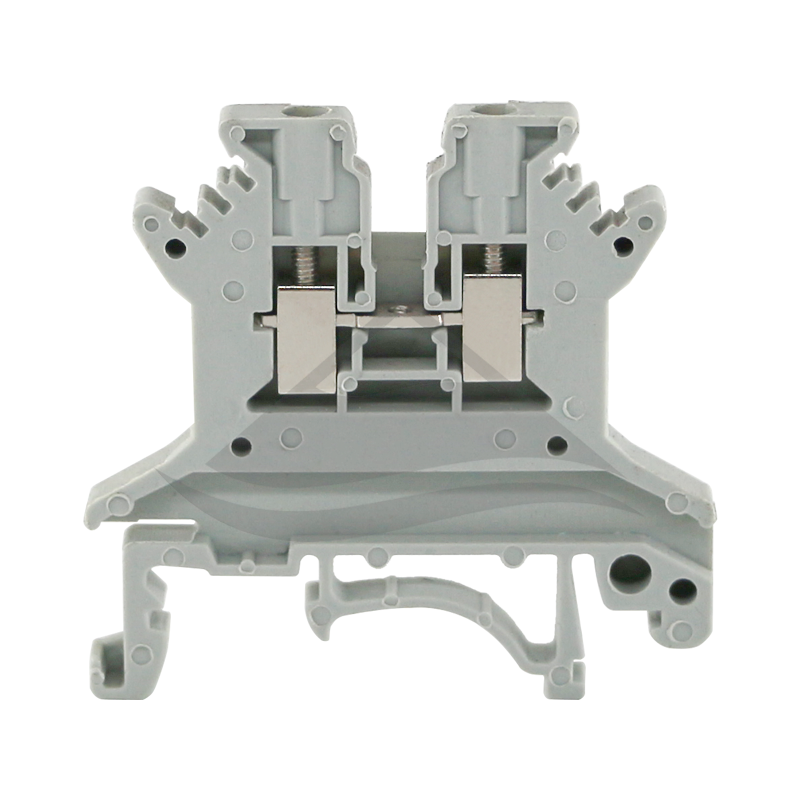

ULO-TB330-UK1.5N
Screw Type Din-Rail Terminal Blocks for reliable DIN rail wiring, with 4.2mm\42.5mm\42mm, 17.5A rated current, 500V rated voltage.
- Conductor cross-section
- 0.14-1.5mm²
- Rated current
- 17.5A
- Rated voltage
- 500V
- Connection method
- Screw connection

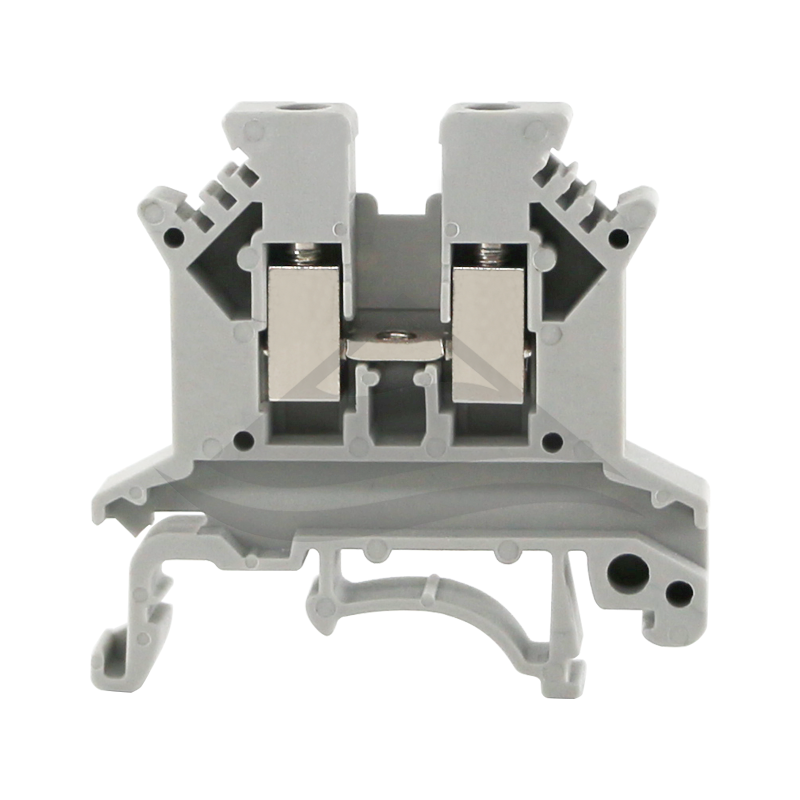

ULO-TB331-UK2.5B
Screw Type Din-Rail Terminal Blocks for reliable DIN rail wiring, with 6.2mm\42.5mm\42mm, 24A rated current, 690V rated voltage.
- Conductor cross-section
- 0.2-4.0mm²
- Rated current
- 24A
- Rated voltage
- 690V
- Connection method
- Screw connection

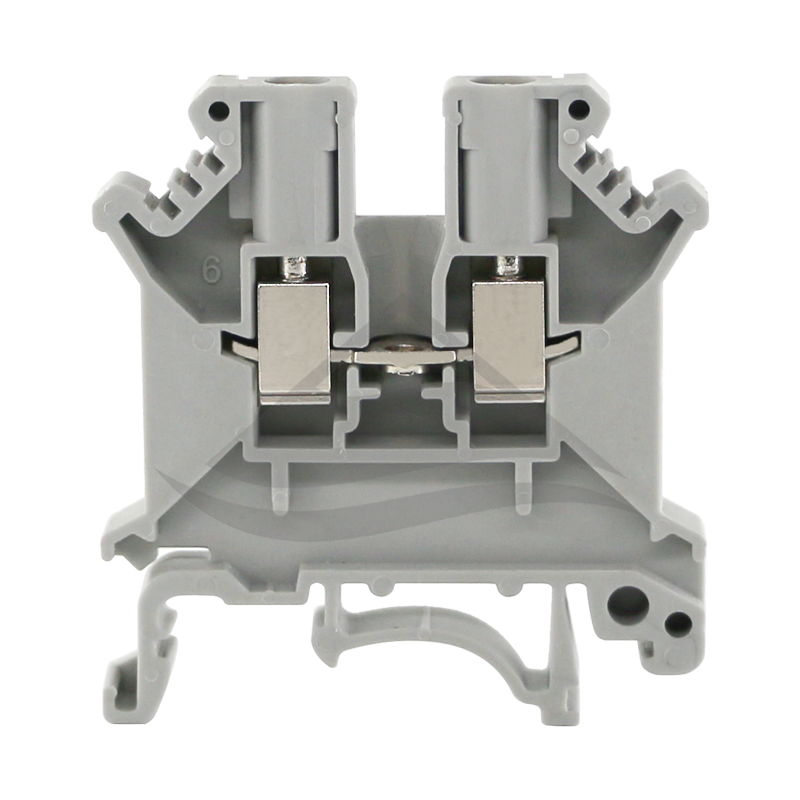

ULO-TB332-UK3N
Screw Type Din-Rail Terminal Blocks for reliable DIN rail wiring, with 5.2mm\42.5mm\47mm, 24A rated current, 800V rated voltage.
- Conductor cross-section
- 0.2-4.0mm²
- Rated current
- 24A
- Rated voltage
- 800V
- Connection method
- Screw connection

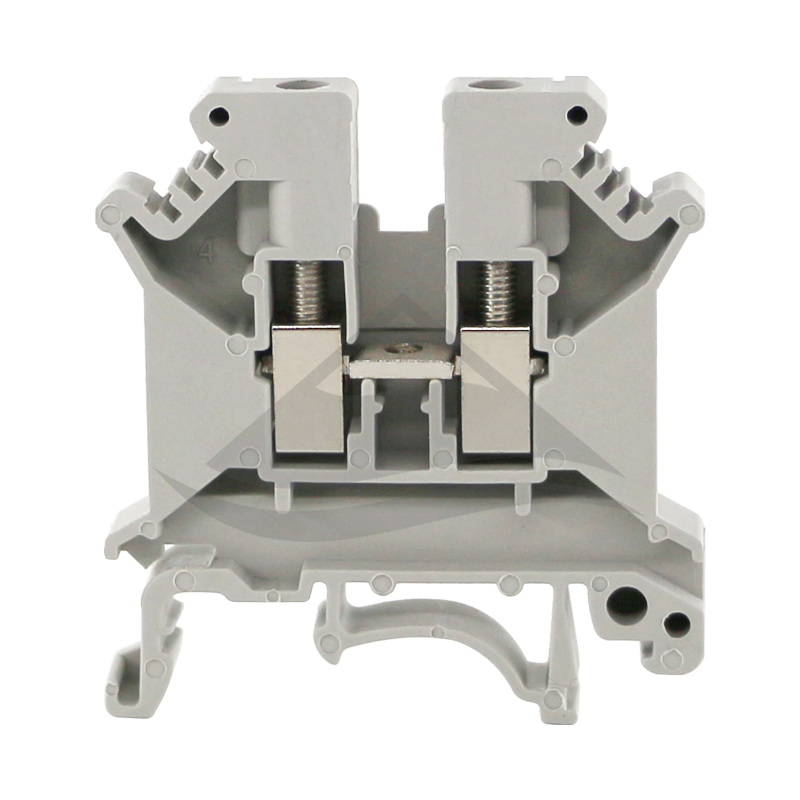

ULO-TB333-UK5N
Screw Type Din-Rail Terminal Blocks for reliable DIN rail wiring, with 6.2mm\42.5mm\47mm, 32A rated current, 800V rated voltage.
- Conductor cross-section
- 0.2-6.0mm²
- Rated current
- 32A
- Rated voltage
- 800V
- Connection method
- Screw connection

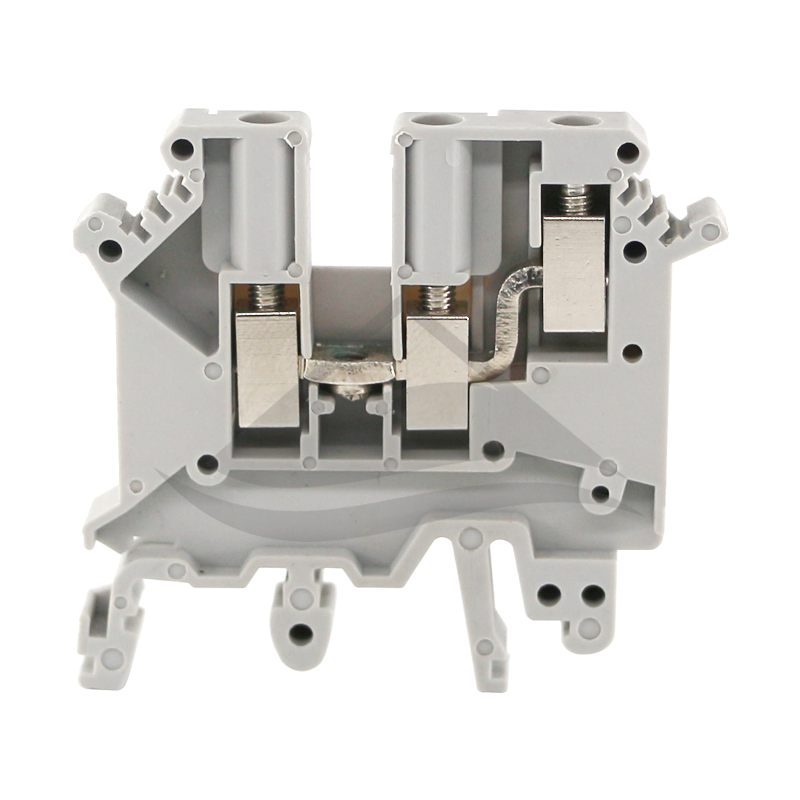

ULO-TB349-UK5-TWIN
Screw Type Din-Rail Terminal Blocks for reliable DIN rail wiring, with 6.2mm\50.5mm\47mm, 32A rated current, 500V rated voltage.
- Conductor cross-section
- 0.2-4.0mm²
- Rated current
- 32A
- Rated voltage
- 500V
- Connection method
- Screw connection

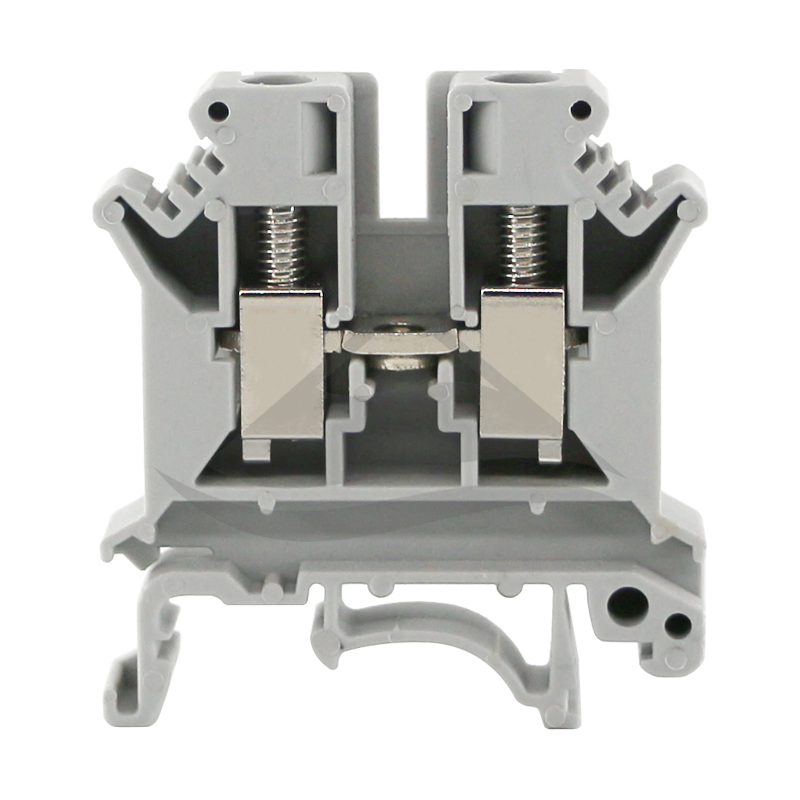

ULO-TB334-UK6N
Screw Type Din-Rail Terminal Blocks for reliable DIN rail wiring, with 8.2mm\42.5mm\47mm, 41A rated current, 800V rated voltage.
- Conductor cross-section
- 0.2-10mm²
- Rated current
- 41A
- Rated voltage
- 800V
- Connection method
- Screw connection

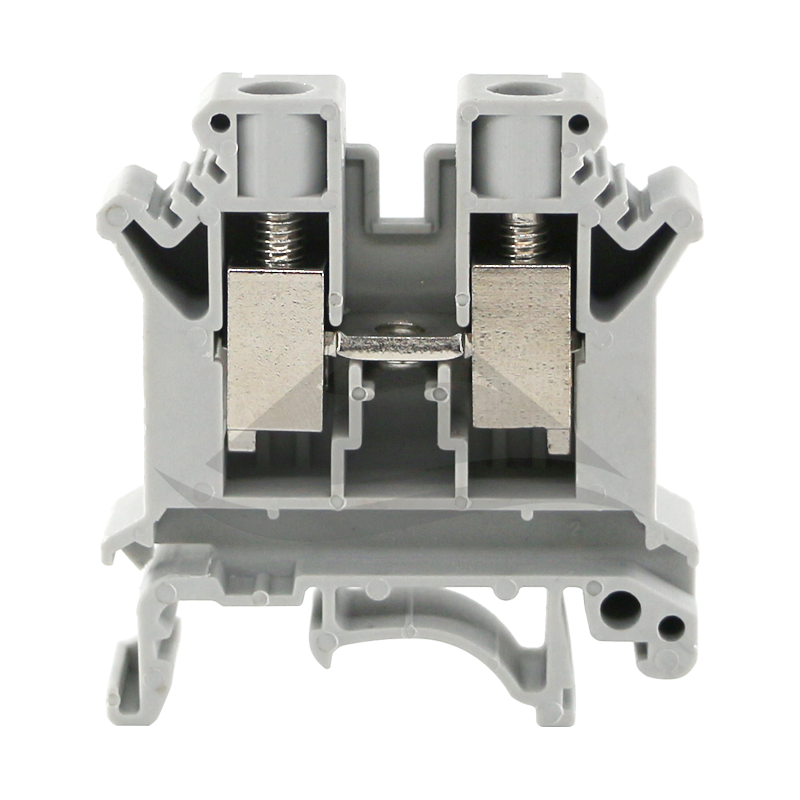

ULO-TB335-UK10N
Screw Type Din-Rail Terminal Blocks for reliable DIN rail wiring, with 10.2mm\42.5mm\47mm, 57A rated current, 800V rated voltage.
- Conductor cross-section
- 0.5-16mm²
- Rated current
- 57A
- Rated voltage
- 800V
- Connection method
- Screw connection

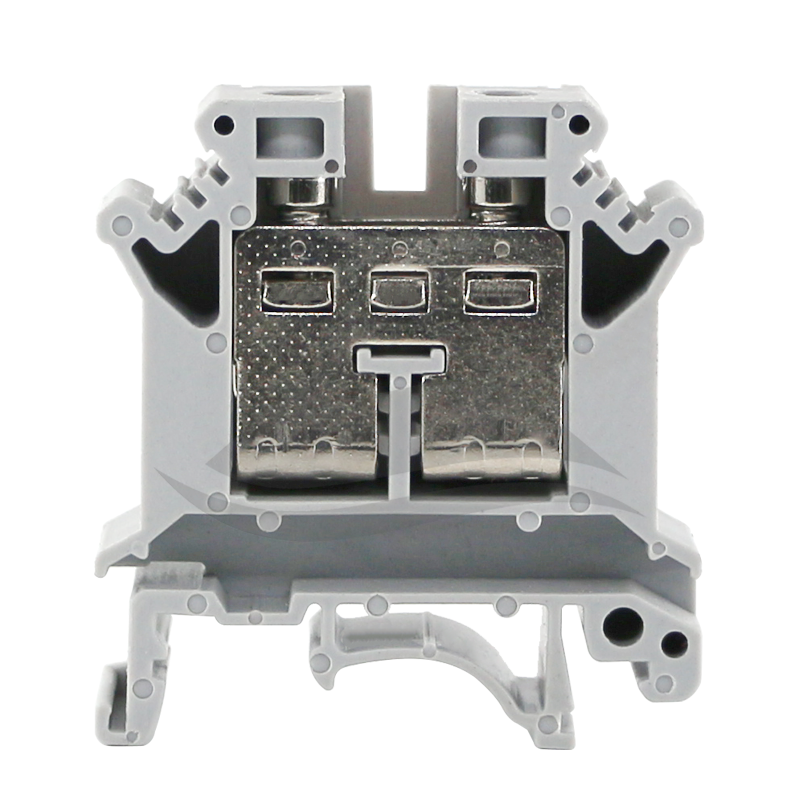

ULO-TB338-UIK16
Screw Type Din-Rail Terminal Blocks for reliable DIN rail wiring, with 12.2mm\42.5mm\47mm, 76A rated current, 400V rated voltage.
- Conductor cross-section
- 2.5-25mm²
- Rated current
- 76A
- Rated voltage
- 400V
- Connection method
- Screw connection

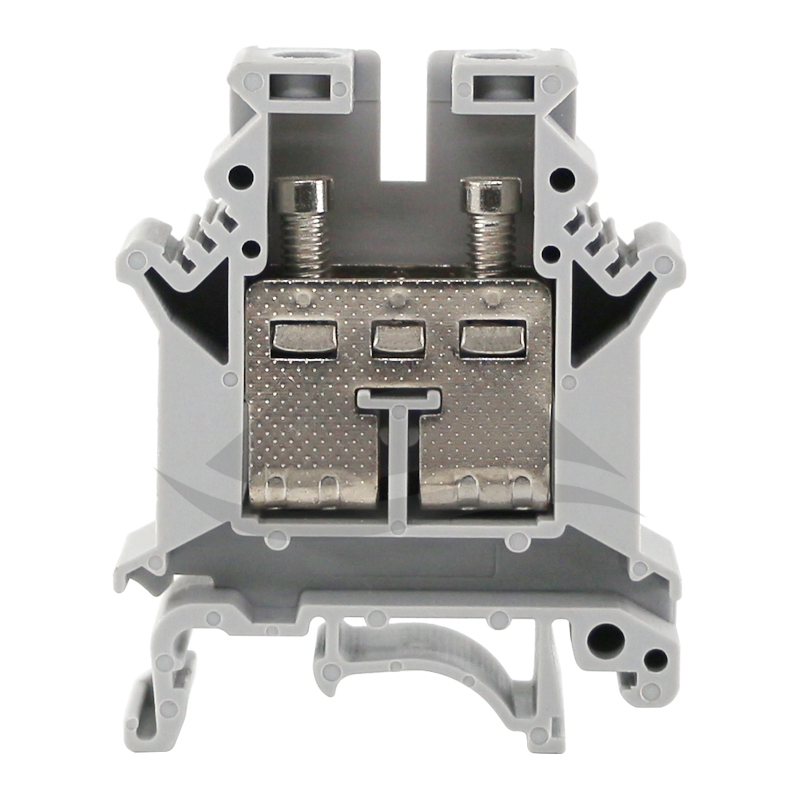

ULO-TB336-UK16N
Screw Type Din-Rail Terminal Blocks for reliable DIN rail wiring, with 12.2mm\42.5mm\54mm, 76A rated current, 800V rated voltage.
- Conductor cross-section
- 2.5-25mm²
- Rated current
- 76A
- Rated voltage
- 800V
- Connection method
- Screw connection

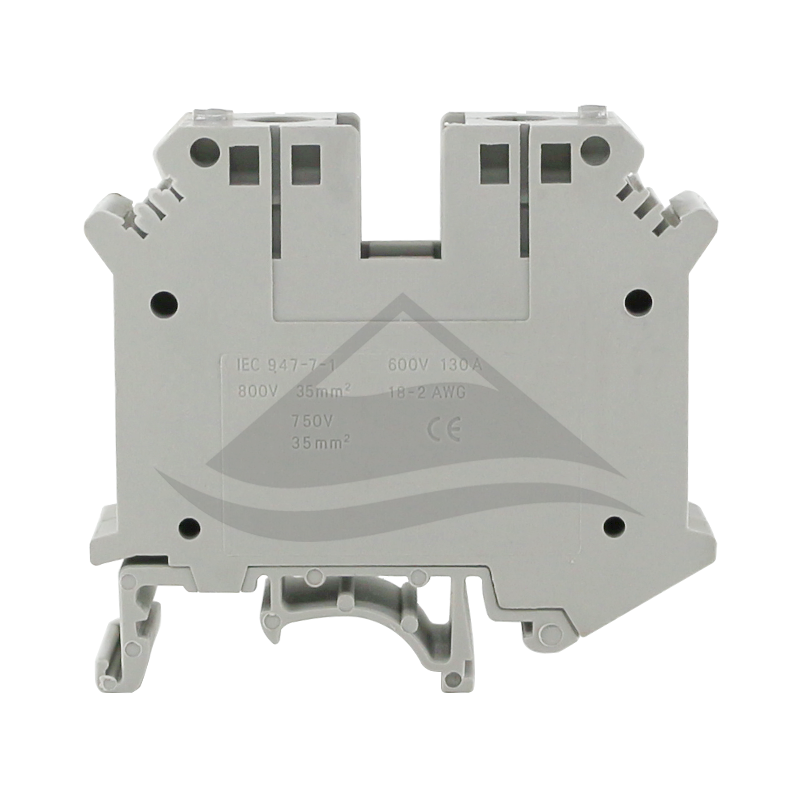

ULO-TB339-UIK35
Screw Type Din-Rail Terminal Blocks for reliable DIN rail wiring, with 15.2mm\55mm\51mm, 125A rated current, 800V rated voltage.
- Conductor cross-section
- 0.75-35mm²
- Rated current
- 125A
- Rated voltage
- 800V
- Connection method
- Screw connection

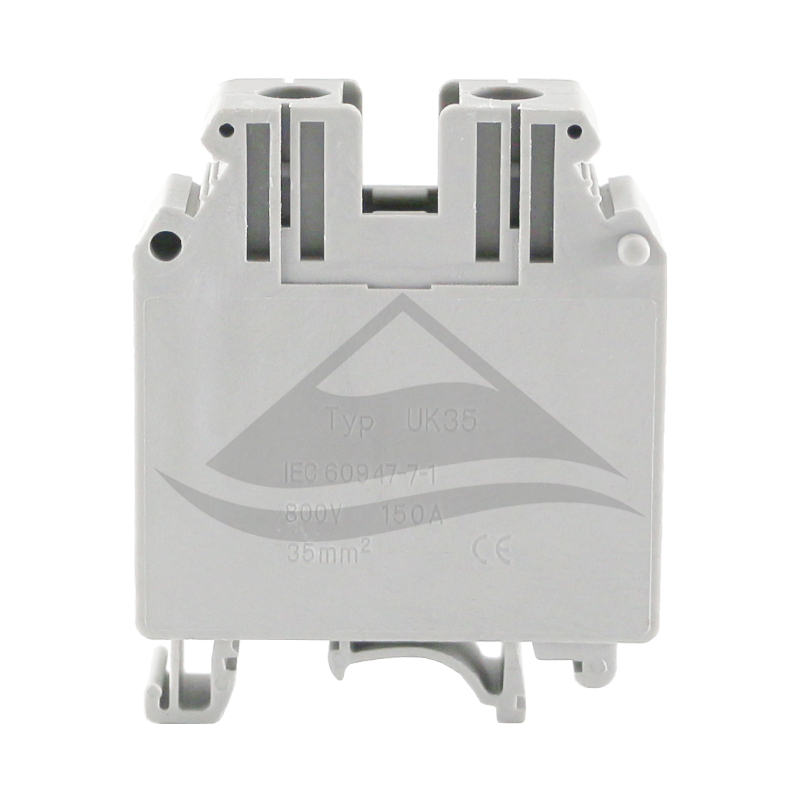

ULO-TB337-UK35N
Screw Type Din-Rail Terminal Blocks for reliable DIN rail wiring, with 15.2mm\50mm\62mm, 125A rated current, 1000V rated voltage.
- Conductor cross-section
- 10-35mm²
- Rated current
- 125A
- Rated voltage
- 1000V
- Connection method
- Screw connection

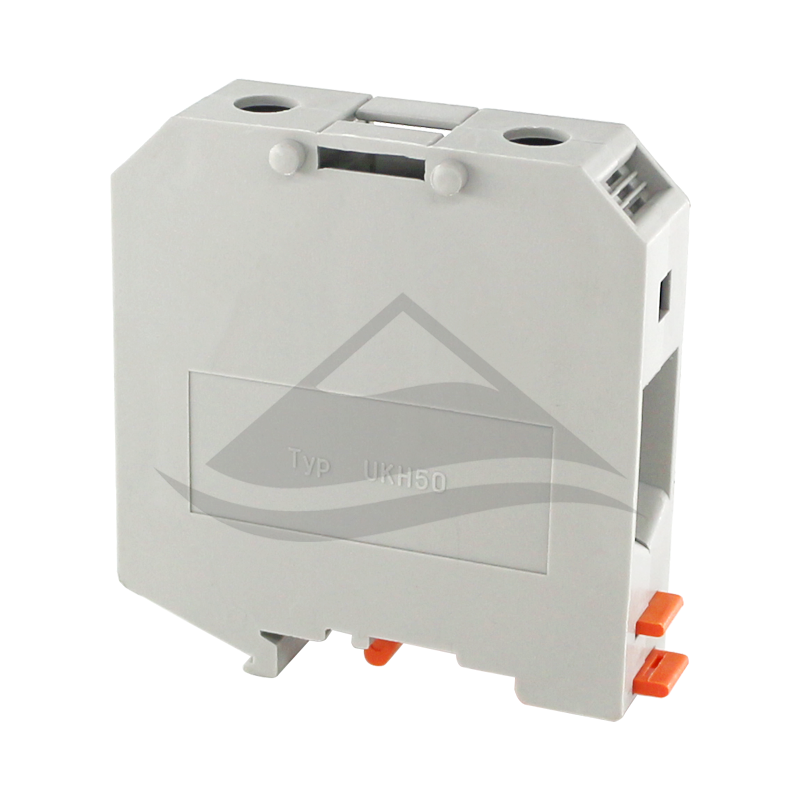

ULO-TB340-UKH50
High-Current Screw Type Din-Rail Terminal Blocks for reliable DIN rail wiring, with 20mm\70.5mm\83.5mm, 150A rated current, 1000V rated voltage.
- Conductor cross-section
- 16-70mm²
- Rated current
- 150A
- Rated voltage
- 1000V
- Connection method
- Screw connection
