Product Range
Browse available relay module models and compatible accessories.
Relay Modules
Relay interface modules for PLC output interfacing, signal isolation and reliable switching of solenoid valves, contactors, indicators and other field loads.
Filter by Specifications
Narrow products by channel count, control voltage, contact configuration, rated load and other key parameters.
Selection Support
Get help selecting relay modules for your PLC outputs, load characteristics, channel requirements and cabinet layout.
Datasheets & Quotes
Access technical documents and request pricing directly from the product list.
Relay Modules (10)

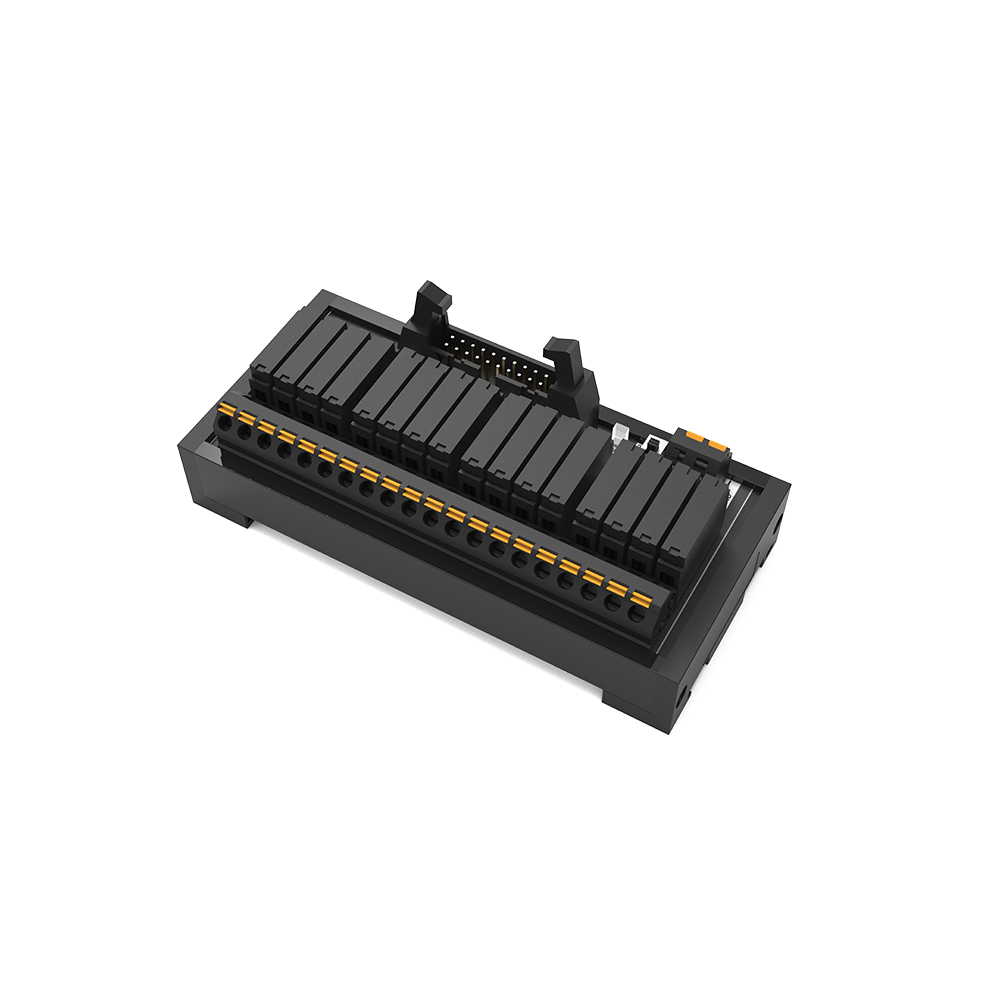

ERS-16LC
16 channels relay module with 1 normally open contact, 5A output rating and 20P MIL connector.
- Rated Voltage
- 24V DC ±10%
- Rated Current
- 5A
- Contact Capacity
- 5A 250V AC / 5A 30V DC
- Action Time
- <10ms

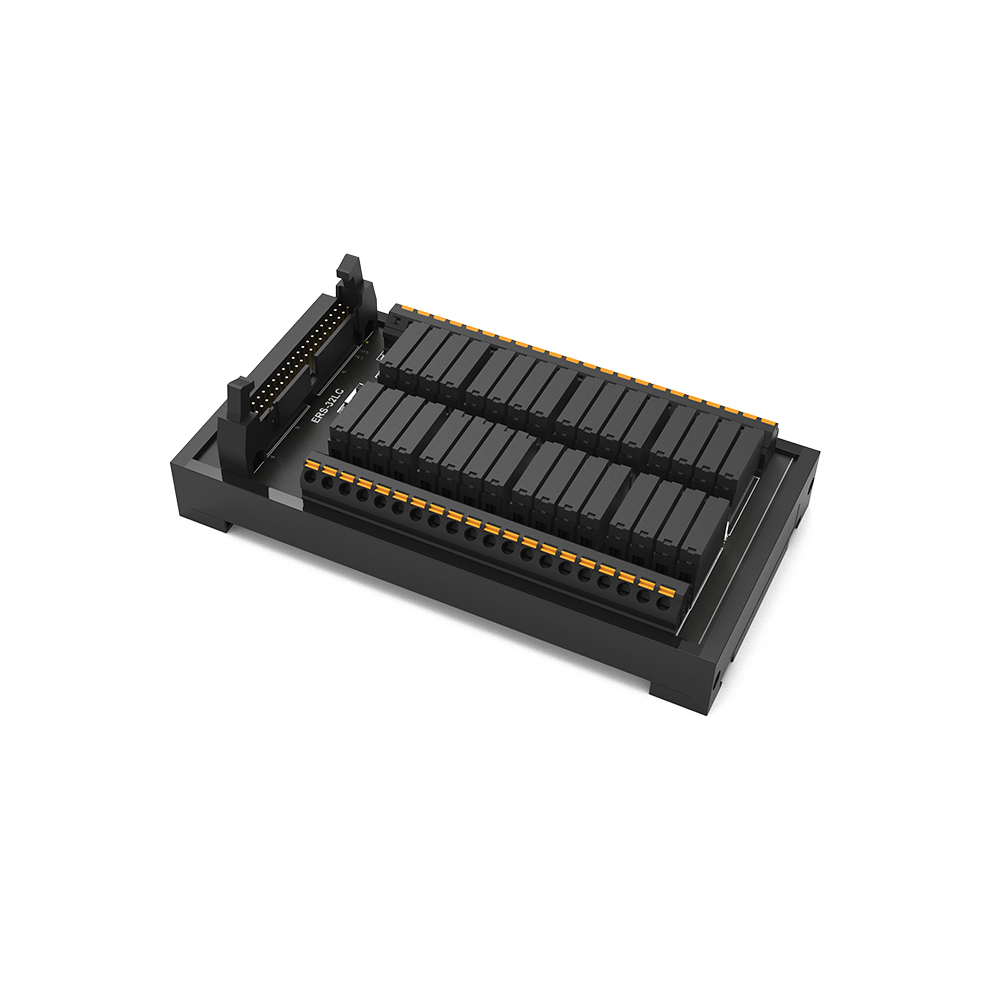

ERS-32LC
32 channels relay module with 1 normally open contact, 5A output rating and 40P MIL connector.
- Rated Voltage
- 24V DC ±10%
- Rated Current
- 5A
- Contact Capacity
- 5A 250V AC / 5A 30V DC
- Action Time
- <10ms

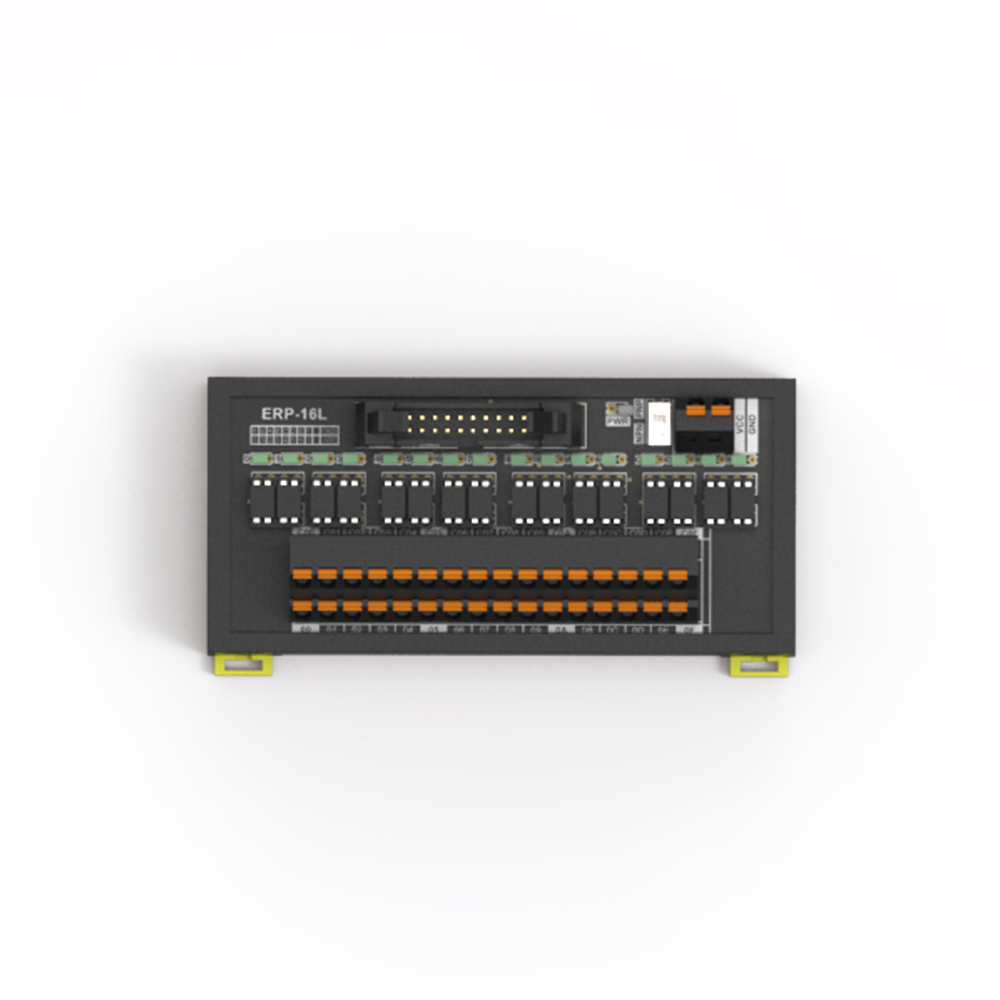

ERP-16L
16 channels relay module with 1 normally open contact, 1A output rating and 20P MIL connector.
- Rated Voltage
- 24V DC ±10%
- Rated Current
- 1A
- Contact Capacity
- AC/DC 30V, 1A continuous load current
- Action Time
- 1.5ms average
No product image
ERP-32L
32 channels relay module with 1 normally open contact, 1A output rating and 40P MIL connector.
- Rated Voltage
- 24V DC ±10%
- Rated Current
- 1A
- Contact Capacity
- AC/DC 30V, 1A continuous load current
- Action Time
- 1.5ms average
No product image
ERH-16L1
16 channels relay module with 1 group contact, 12A output rating and 20P MIL connector.
- Rated Voltage
- 5V, 12V, 24V optional
- Rated Current
- 12A
- Contact Capacity
- 12A 250V AC / 12A 30V DC
- Action Time
- <15ms
No product image
ERH-16T1
16 channels relay module with 1 group contact, 12A output rating and Terminal type.
- Rated Voltage
- 5V, 12V, 24V optional
- Rated Current
- 12A
- Contact Capacity
- 12A 250V AC / 12A 30V DC
- Action Time
- <15ms
No product image
ERH-16L2
16 channels relay module with 2 group contacts, 8A output rating and 20P MIL connector.
- Rated Voltage
- 5V, 12V, 24V optional
- Rated Current
- 8A
- Contact Capacity
- 8A 250V AC / 8A 30V DC
- Action Time
- <15ms
No product image
ERH-16T2
16 channels relay module with 2 group contacts, 8A output rating and Terminal type.
- Rated Voltage
- 5V, 12V, 24V optional
- Rated Current
- 8A
- Contact Capacity
- 8A 250V AC / 8A 30V DC
- Action Time
- <15ms
EFRD-EC-16T1HS
16 channels relay module with 1 group contact, 12A output rating and EtherCAT bus.
- Rated Voltage
- 24VDC
- Rated Current
- 12A
- Contact Capacity
- 12A 250V AC / 12A 30V DC
- Action Time
- <15ms

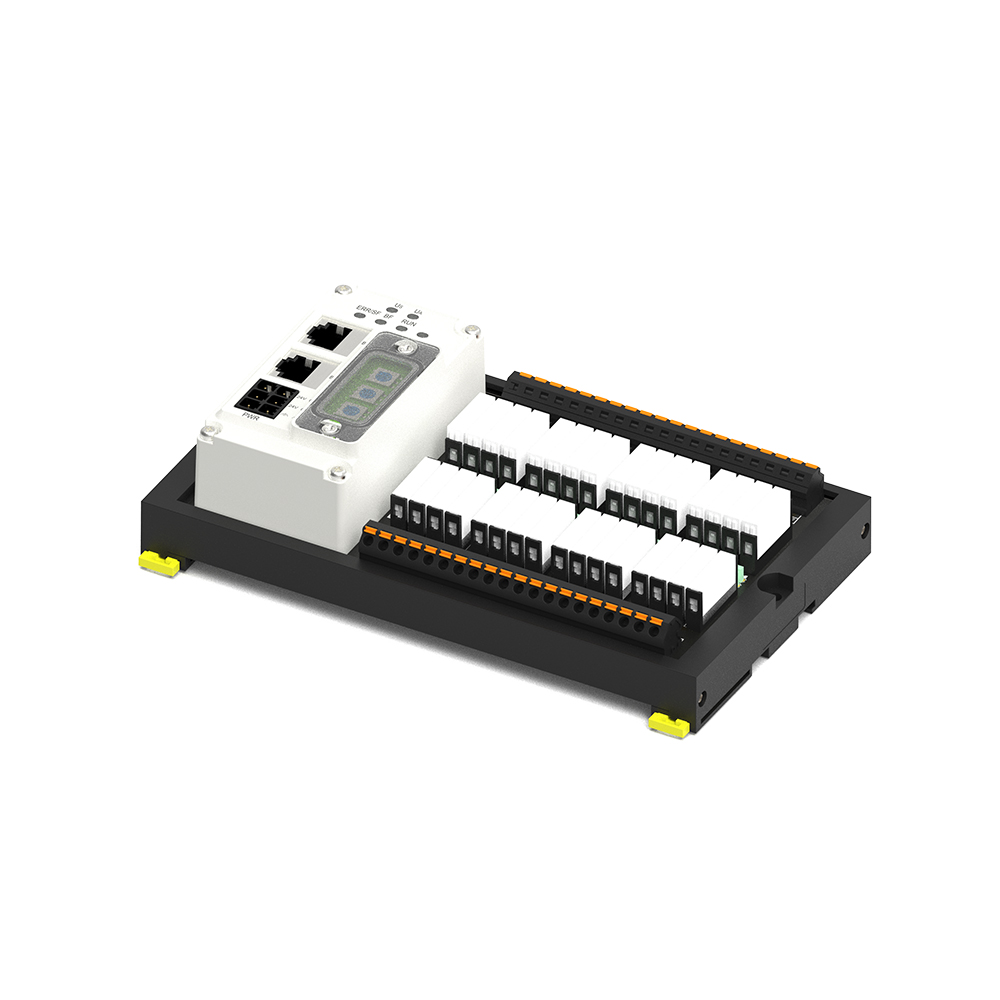

EFRS-EC-32LC
32 channels relay module with 1 normally open contact, 5A output rating and EtherCAT bus.
- Rated Voltage
- 24V DC ±10%
- Rated Current
- 5A
- Contact Capacity
- 5A 250V AC / 5A 30V DC
- Action Time
- <10ms
Need help finding the right product?
Tell us your application requirements and our team will help you identify the right product and configuration.
